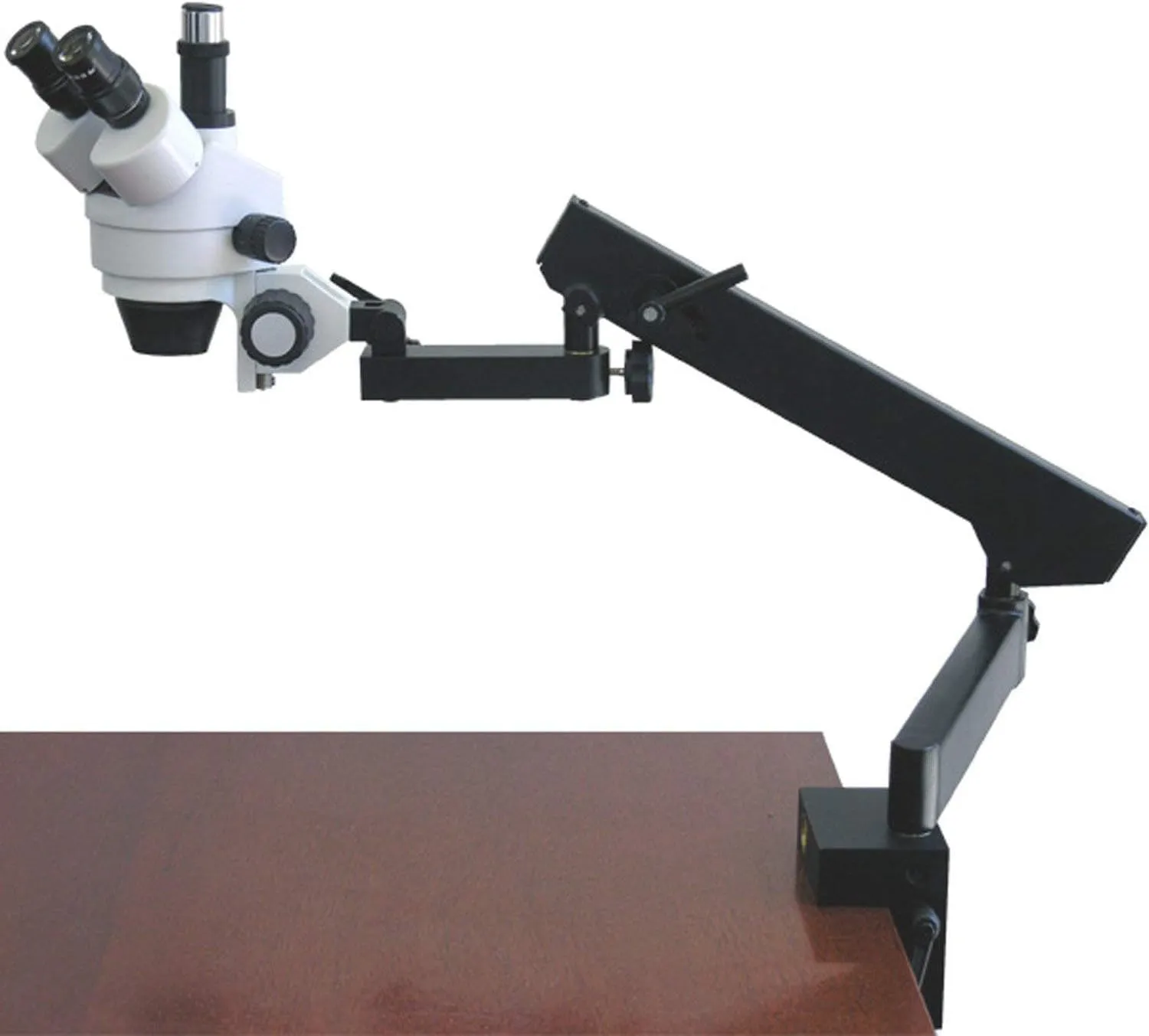

The AmScope SM-6TX professional trinocular stereo zoom microscope has a pair of 10x super-widefield high-eyepoint eyepieces, a 0.7x-4.5x zoom objective, a 0.5x Barlow lens, and a clamping articulating arm stand. The microscope has an overall magnification range of 3.5x-45x. The trinocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port (camera sold separately). The WH10x20mm super-widefield high-eyepoint eyepieces combine with the 0.7x-4.5x zoom objective to provide continuous zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope comes with a 0.5x Barlow lens that can be added to the objective to decrease the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.

Ambient lighting illuminates the specimen, eliminating the need for power or batteries. The stand has an articulating arm with a 40" reach for covering a large work space, and a clamp for attaching the microscope to a work surface. The stand can be attached to ledges up to 2-1/8" (53mm) thick.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.

What's in the Box?

• AmScope SM-6TX stereo zoom microscope with clamping articulating arm stand
• WH10x20mm eyepieces, 30mm, one pair
• 0.7x-4.5x zoom objective
• 0.5x Barlow lens
• Focus rack
• Eye guards, one pair
• Instructions
