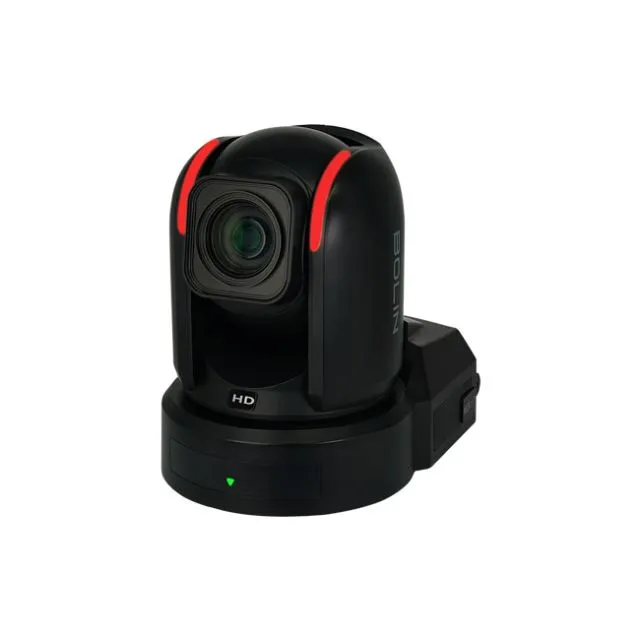

Bolin Technology R9-230NX Full HD NDI|HX3 PTZ Camera (Black)
Bring HD quality video to your production with the black R9-230NX Full HD NDI|HX3 PTZ Camera from Bolin. This versatile PTZ camera outputs up to 1080p60 via 3G-SDI, HDMI, and IP streaming, and this model also features high-quality, low-latency NDI|HX3 streaming. It features a large 1/1.8" CMOS sensor with 4.17MP image capture, a 30x optical zoom, a built-in tally light, an additional 12x digital zoom, and a wide 58.1° angle-of-view.
The camera can output three simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to 1080p60. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the 10-pin LEMO-type audio port. An optional fiber-based SDI module can be added using the SFP slot. The camera can be powered using PoE or via an optional power adapter.
Â
Features
- Designed for indoor useÂ
- Large 1/1.8" CMOS sensor, 4.17MP
- HDMI, 3G-SDI, and IP output up to 1080p60
- High-resolution, low-latency NDI|HX3 support
- 30x optical, 12x digital zoom
- Tally light
- Embedded LEMO-type 10-pin audio input/output with optional breakout cableÂ
- Maximum 100°/s pan/tilt in high-speed mode
- Live streaming via RTMP, RTSP, RTP, MP2TS over UDP, TS over RTP/SRT, NDI|HX3
- Image stabilization
- PoE and 12 VDC power supply options
- Optional single-mode LC fiber module via SFP slot
- FreeD Protocol integrated for VR/AR video production
Â
What’s In The BoxÂ
- Bolin Technology R9-230NX Full HD NDI|HX3 PTZ Camera (Black)
- Power Adapter
- Power Cable
- IR Remote Control
- RJ45 to RS-422 Extension Cable
- Mounting Screw Set
- Safety Cable
- Dust Cover
- Lens Cap
