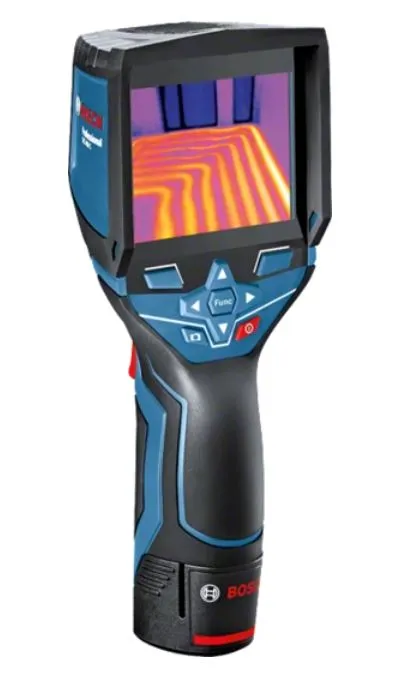

Bosch GTC400 C Professional Thermo Camera | Model : B-GTC400C
Features :
- Fast exchange of data and easy documentation of thermal images with the Bosch Thermal App
- Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
- Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch Thermal App documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.
It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.
The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
Specifications :
| Additional data | |
|---|---|
| Measuring application | Thermal image |
| Measurement range | -10 °C to 400 °C |
| Measuring accuracy of IR | ± 3.0 °C* (*plus use-dependent deviation) |
| Data transfer | MicroUSB, Wi-Fi |
| Thermal sensitivity (NETD) | <50 mK |
| Size of IR sensor | 160x120 px |
| Field of view (FOV) | 53x43 ° |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Resolution | 0.1 °C |
| Number of measuring points | 19,200 |
| Power supply and runtime | 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V |
| Frame buffer (number of images) | 500 |
| Memory type | Internal memory |
| File format of image | .jpg |
| Dust and splash protection | IP 53 |
| Weight | 0.54 kg |
| Supported Android devices | Smartphone with Android 6.0 or higher |
| Supported iOS devices | iPhone with iOS 11 or higher |
| Size of display | 3,5" |
| Focus distance, minimum | 0.3 m |
Accessories included :
- AA1 alkaline battery adapter1 608 M00 C1B
- 4 x 1.5 V LR6 battery (AA)
- Protective Bag
- Hand strap
- Micro USB cable2 609 120 670
