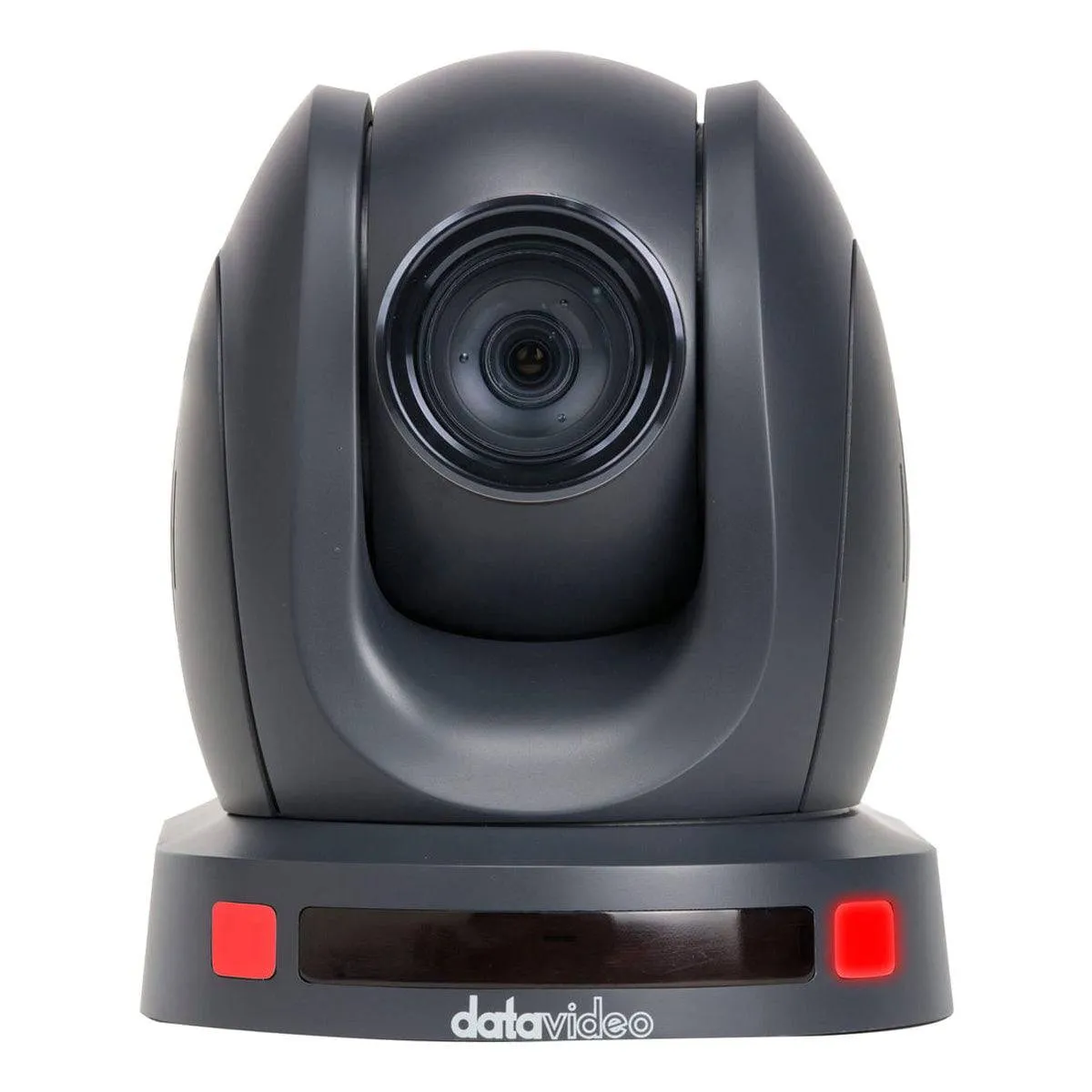

The Datavideo PTC-140TH HDBaseT PTZ Camera with HBT-11 Receiver is an affordable HDBaseT PTZ Camera that provides PoE, a built-in streaming encoder, and 20x optical zoom. It features a ½.8” CMOS sensor, 10x Digital zoom and can capture Full HD Video at 60fps. It can be mounted on a wall, ceiling, floor, or tabletop. Moreover. all signals, power, and control data travel through a single network cable (CAT6) and can reach a distance up to 328 feet away.
The PTC-140T's onboard streaming encoder can encode up to 2 simultaneous streams to any cloud service. This can include Datavideo’s own DVS-200. The PTC-140TH is compatible with the HS-1500T and HS-1600T HDBaseT Portable Video Studios, and remotely controllable by RMC-300 and RMC-180 PTZ Camera Controller. In addition, the multiple Network Protocol supports RTSP, RTMP protocols, and support, easy-to-link streaming media server.

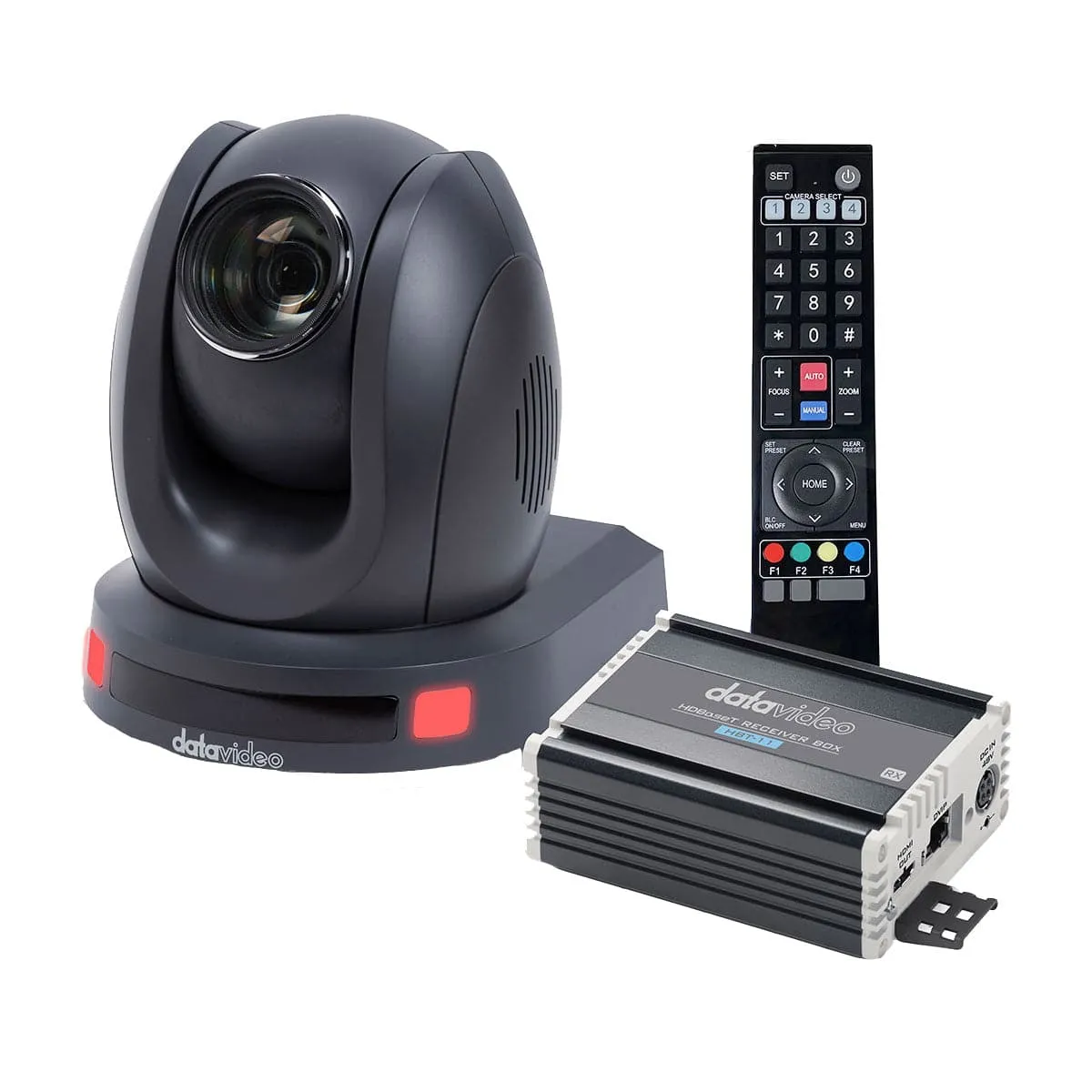

The camera comes with an HBT-11 HD BaseT Receiver for remote control purposes, video image conveyance, power transmission, and Ethernet connection. A 48V power source is connected to the HBT-11 HDBaseT receiver, the HBT-11 can remotely power the transmitter using Power over Ethernet (PoE)
PTC-140TH Features:
- 1/2.8 inch CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
- Low Noise CMOS effectively ensures high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
- Audio Input Interface
- Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding.
- Supports H.264/H.265 video compression; AAC, MP3, and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
- Supports multiple network protocols including RTSP, RTMP and it also supports easy to link streaming media server.
