DVDO CAMERA-CTL-2 Overview

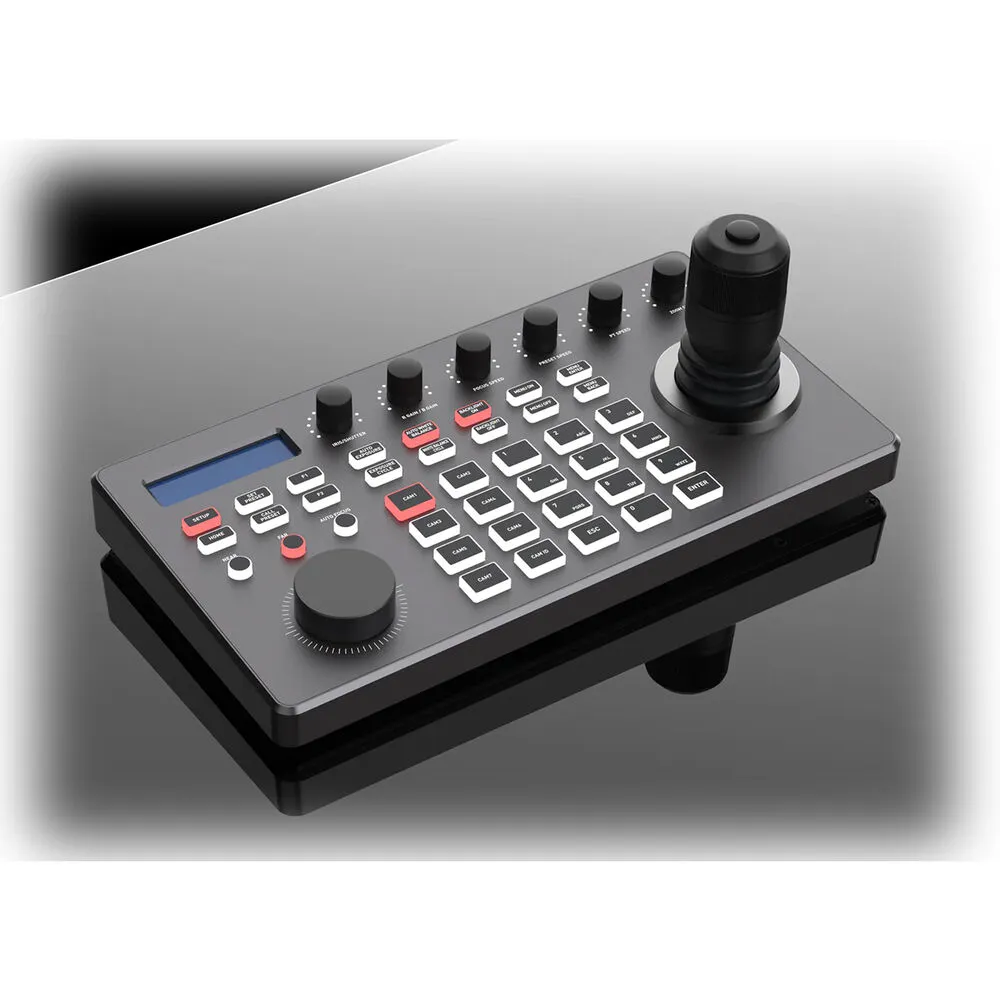

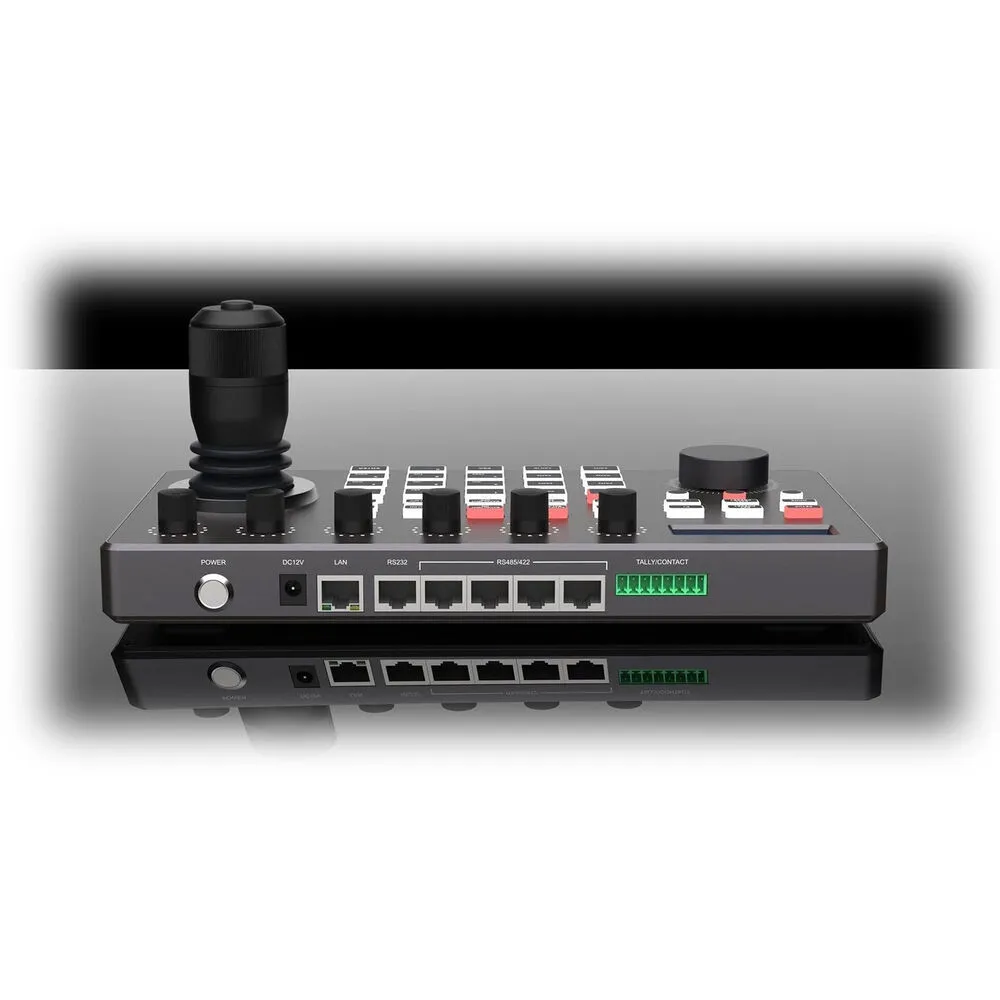

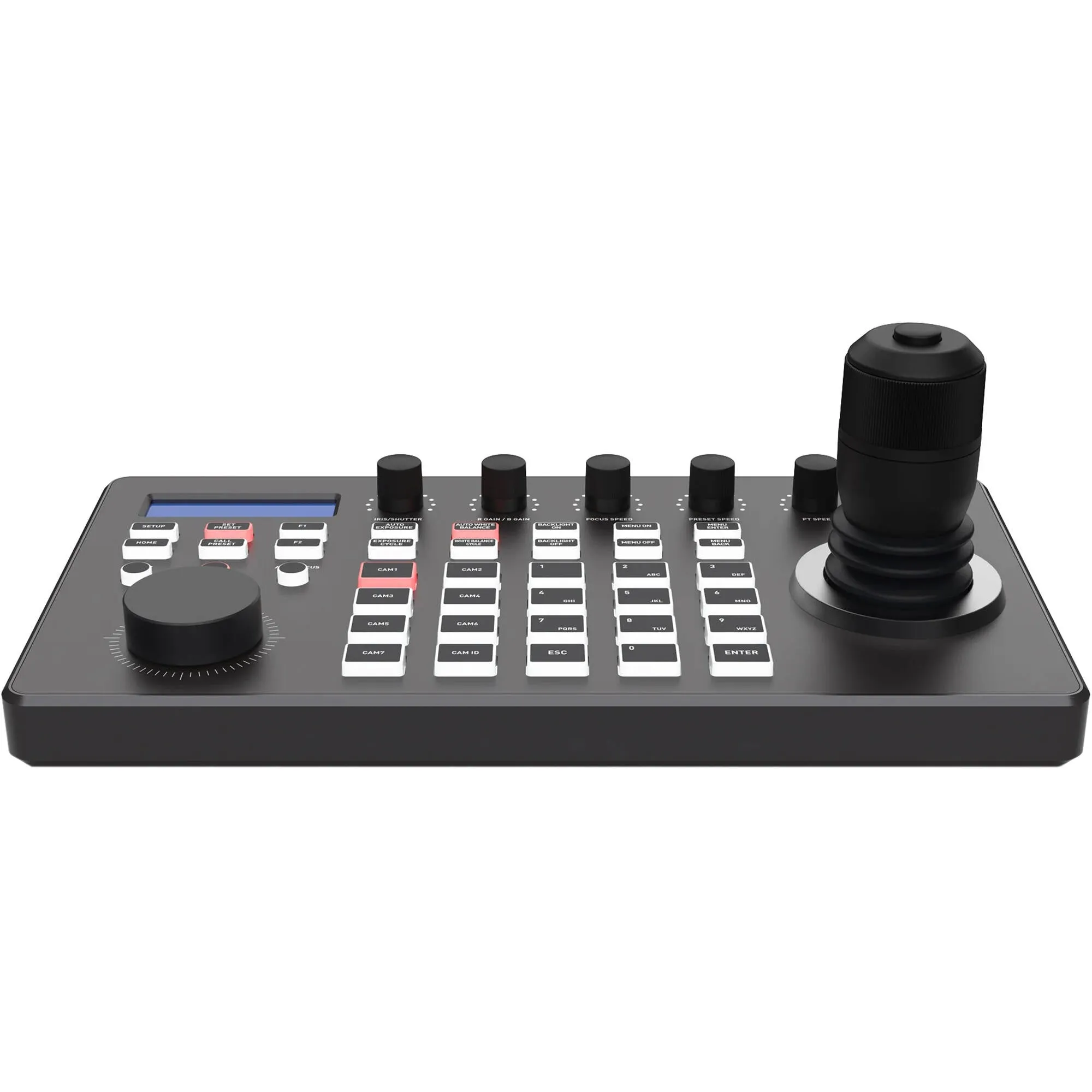

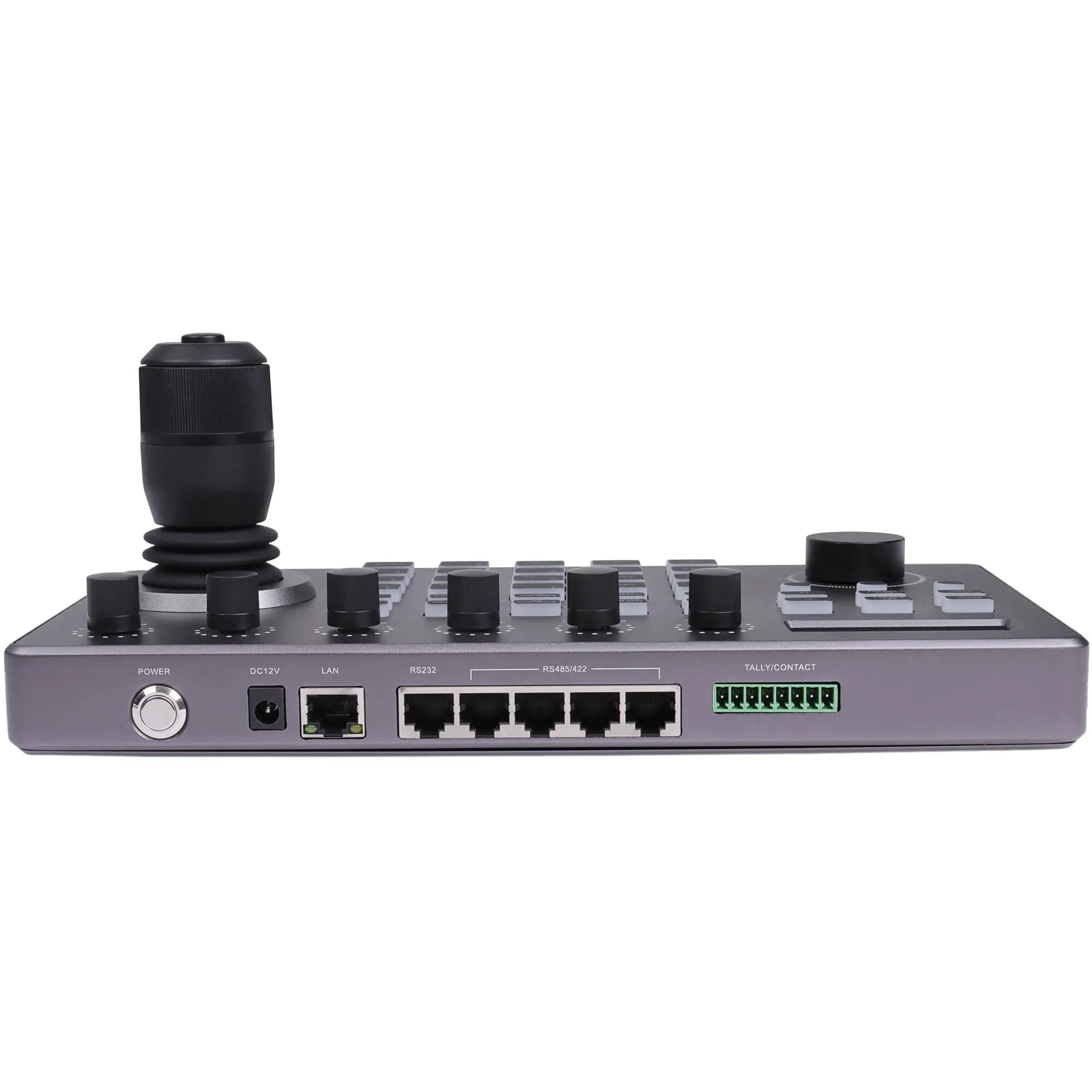

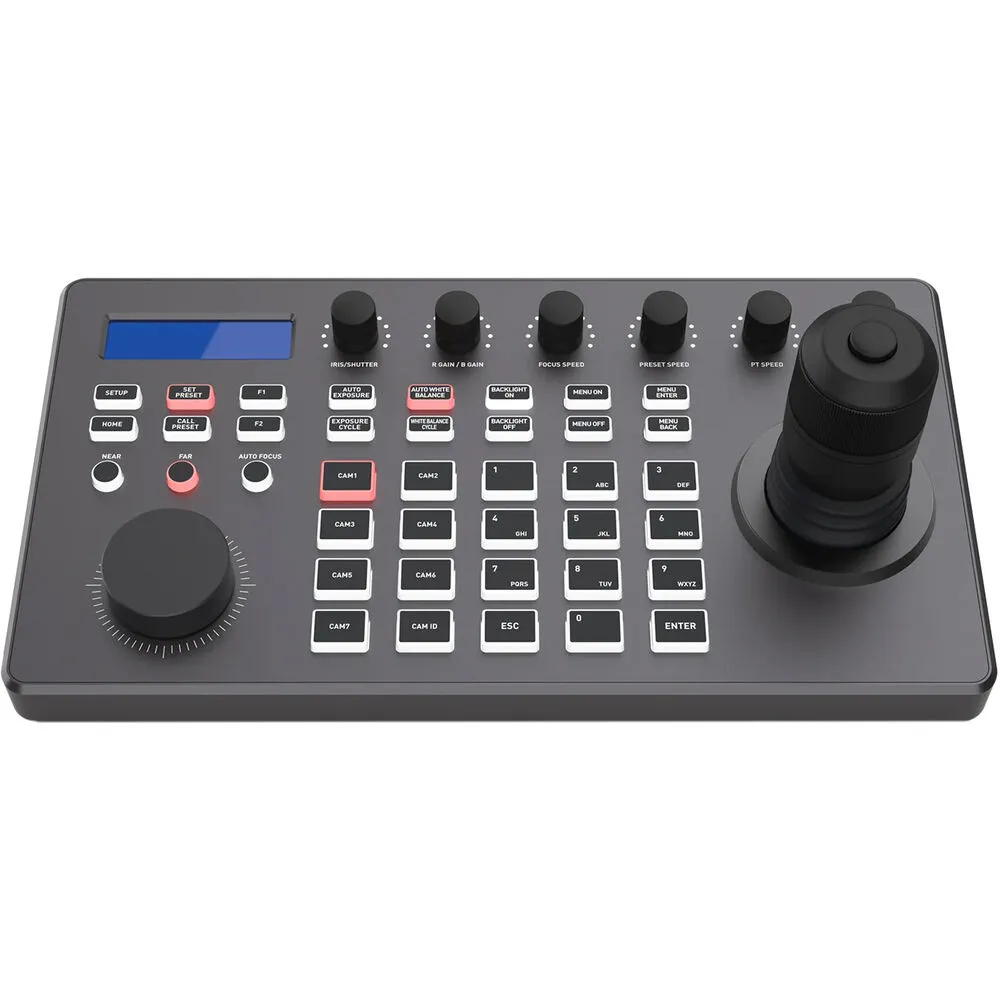

The DVDO IP PTZ Camera Controller with Joystick features an integrated LCD screen, multiple knobs, and several backlit buttons for direct camera selections, and a 4D joystick with variable speed. The controller can manage up to 255 PTZ cameras through IP and/or serial connections. Its controls include Pan, Tilt, Zoom, PTZ speed, Focus, Iris, White Balance, and R/B color correction. The web-based GUI simplifies camera setup and configuration, and the controller can be powered either by an external power supply or via Power over Ethernet (PoE).
Features at a Glance
- Controls up to 255 PTZ cameras over IP and/or serial
- RS-232, RS-422, and RS-485 supported within the same network
- Supports NDI, ONVIF, VISCA, and Pelco protocols, as well as auto discovery
- 4D joystick (up/down, left/right, zoom in/out, confirm) with variable speed
- Additional circular knob for zoom adjustment
- Seven buttons for direct camera selections
- Other controls include PTZ speed, focus, iris, white balance, and R/B color correction
- Web-based GUI for easy setup and configuration
- Tally control function
- Supports PoE or external 12V power supply options
UPC: 880802002040
Items Included
- DVDO IP PTZ Camera Controller with Joystick
- Limited 1-Year Manufacturer Warranty
Additional Resources
User Manual
0.8 MB
