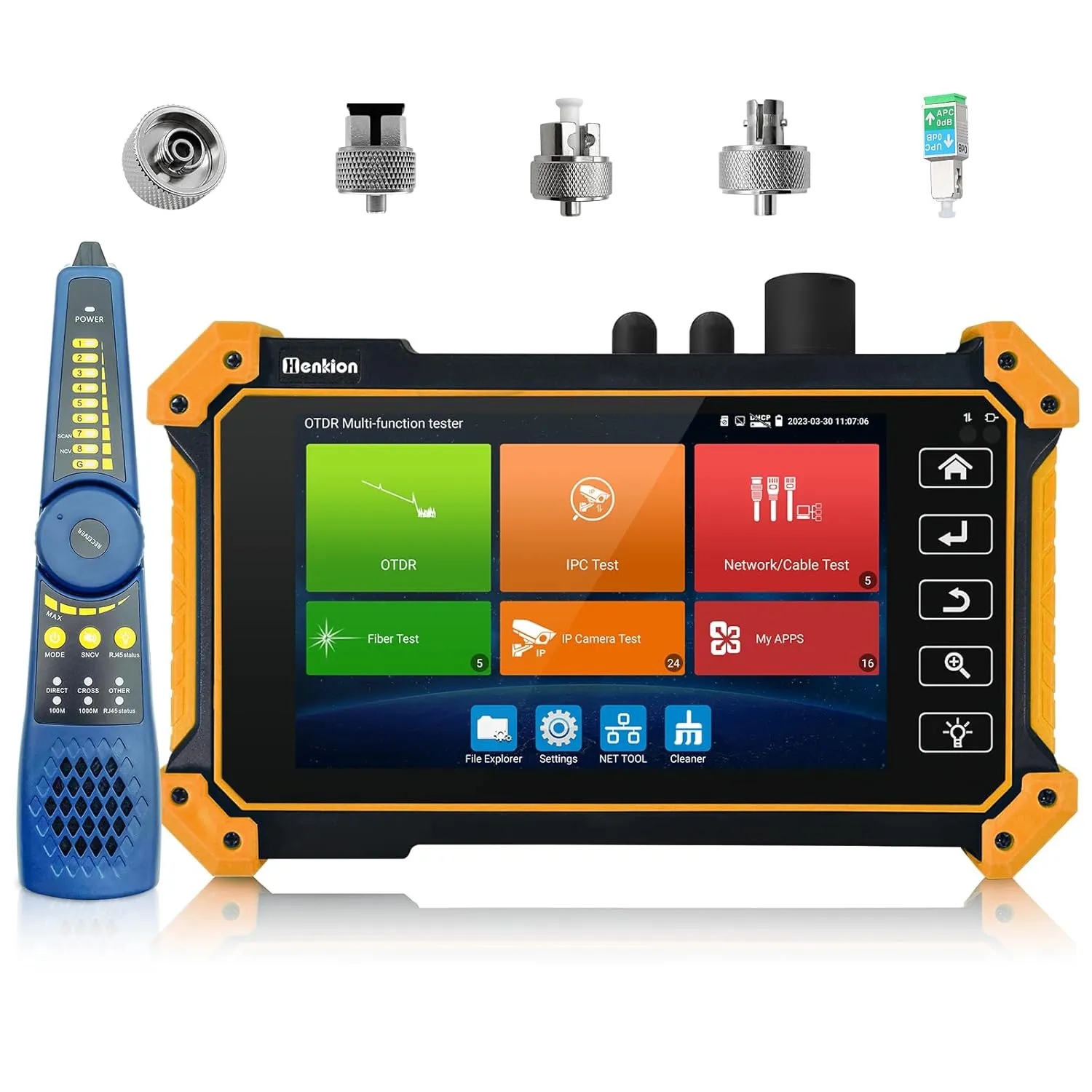

- 【Intelligent OTDR measurement】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 28/26dB,the max test distance 150km.For auto range mode: can one click start test,only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/ map are displayed simultaneously. Pls note:This mode only can detect optical signal,doesn't support live test.
- 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Support automatic or manual save the most of 4 traces simultaneousiy,creat trace reports to the storage path.SOR standard file format PDF/EXCEL.
- 【 OPM VFL LS OLS Tools&WIFI】5.4 inch IPS touch screen OTDR tester,1920x1152 resolution.OPM--It is used for optical power testing and fiber link loss relative measurement.VFL-- the position of optical fiber fault point can be easily and accurately determined.LS--To test multi-mode and single mode fibers bending and breakage,test range 8KM (26246fts).OLS--used to test the insertion loss of optical passive devices.Built-in Wifi,creat wifi hotspot,wifi analyze.
- 【Event map&Cable Tester&Network tool】Event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically.UTP cable test.RJ45 TDR cable. With Cable tracer,can quickly find out the BNC cable,network cable and telephone cable from the mess cables.
- 【CCTV Camera Tester & Battery】CCTV tester supports max 12MP 4000 x 3000P 4K IP Camera test. IP discovery,Rapid ONVIF. Support batch activate for Hik & DH cameras and modify IP address,password etc.Compatible with most existing cameras. Power management. Android 10.0 operation system upgrade online or download the APP. Built-in 7.4V Lithium polymer battery, 2600mAh, 19.24Wh. Tester Dimension/Weight:8.3x5.98x1.93inch/1.9lbs.
- 【Quality Assurance】Before test or test result is not accurate, please using the alcohol cotton to clean the fiber connector. OTDR fiber tester RSO-5000 series models include RSO-5510, RSO-5500, RSO-51, RSO-50 Different models support different functions. Professional OTDR/Camera/Cable/Network test tools,We offer 24h technical support and 1 year warranty.
- Package Dimensions : 10 x 5.5 x 3.9 inches; 1.9 Pounds
- Batteries : 1 Lithium Ion batteries required.
- Date First Available : December 15, 2023
- Manufacturer : Henkion
- Country of Origin : China
