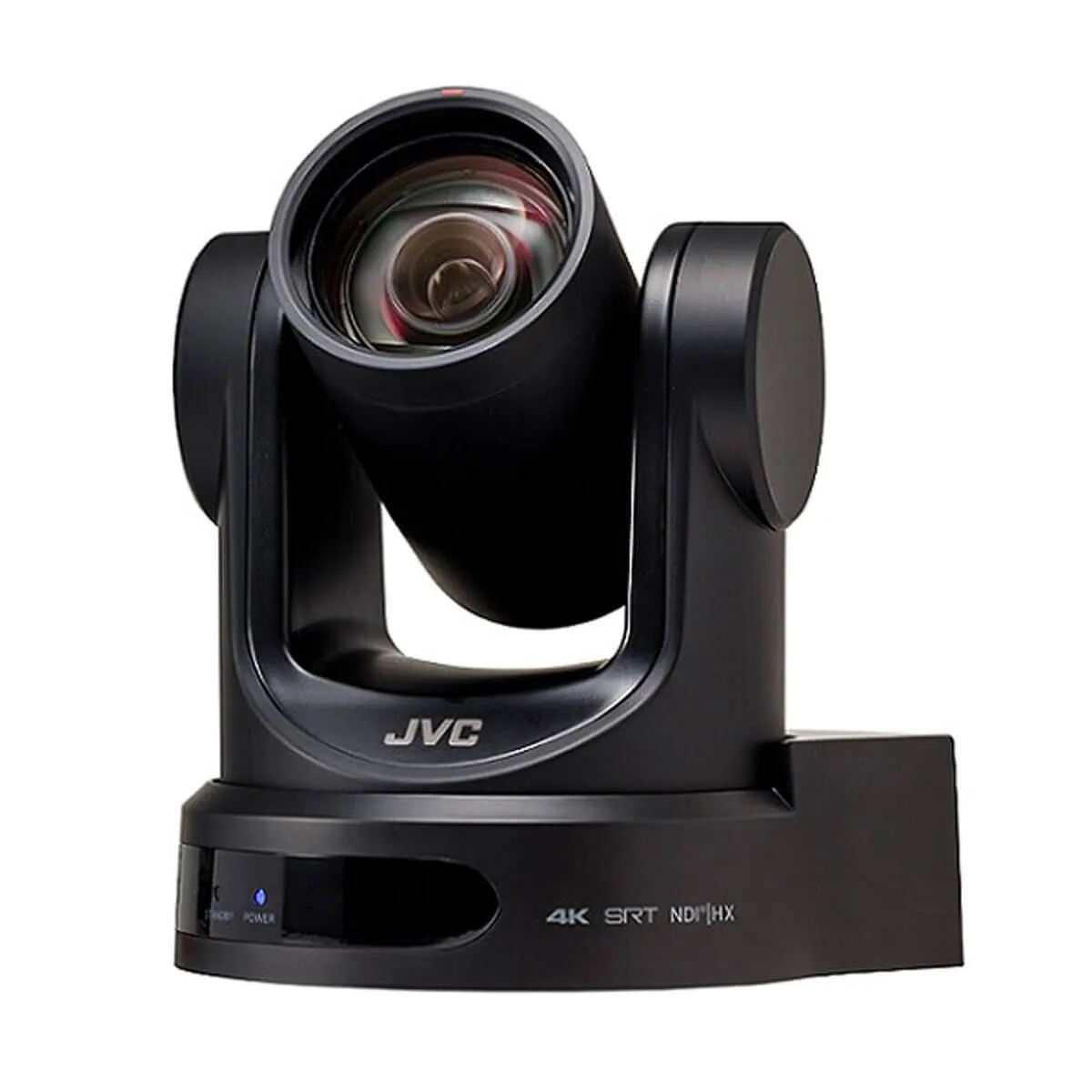

The JVC KY-PZ400N 4K NDI HX PTZ Camera with 12x Optical Zoom (Black) features a 4K 1/2.5" progressive scanning CMOS image sensor, has a wide-angle of view (approx. 26.4mm @35mm equivalence), 0.5 Lux of minimum illumination, and 12x optical zoom. The PZ400N has an HDMI and 3G-SDI, RJ45 with PoE, RS232, and RS485 interfaces standard. The camera provides optimal streaming image quality and performance for remote production over the internet and is equipped with NDI|HX and SRT streaming, H.265/H.264/MJPEG encoding, and VITC (Vertical Interval Timecode) multi-camera synchronization technologies.
In addition to the NDI®|HX functionalities of the 4K KY-PZ400NBU, the camera includes SRT, HTTP, RTSP, RTMP/RTMPS, and standard protocols. With SRT open-source technology now becoming synonymous with JVC cameras, PTZ users are afforded a truly future-proofed solution with continual firmware updates. The advanced streaming capabilities of the incorporated SRT technology adds automatic repeat request (ARQ) and forward error correction (FEC) to prevent packet loss typically found on internet connections. It also offers stream encryption for content protection.
With the incorporated Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), the new JVC PTZ camera also feature multi-camera synchronization for live event production. This feature is ideal for the mixing and streaming of concerts, shows, sports, and other live productions where image synchronization is crucial. Remote control capabilities are made possible through the JVC RM-LP100 Remote Camera Controller, KM-IP6000/4000 Live IP Production Suites, or a variety of other options from vMix, OBS Studio, and NewTek.
PZ400N Features:
- NDI®|HX technology from NewTek®
- Protocols: Secure Reliable Transport (SRT), HTTP, TRSP, RTMP/RTMPS and Standard Protocol
- 1/2.5" CMOS sensor (8.51M effective pixels)
- Lens: 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
- 16x digital zoom and 12x optical zoom
- Angles of view: 71° ~ 8.2° Horizontal / 42.7° ~ 4.5° Vertical
- Vertical rotation range: -30° ~ 90°
- Horizontal rotation range: ±170°
