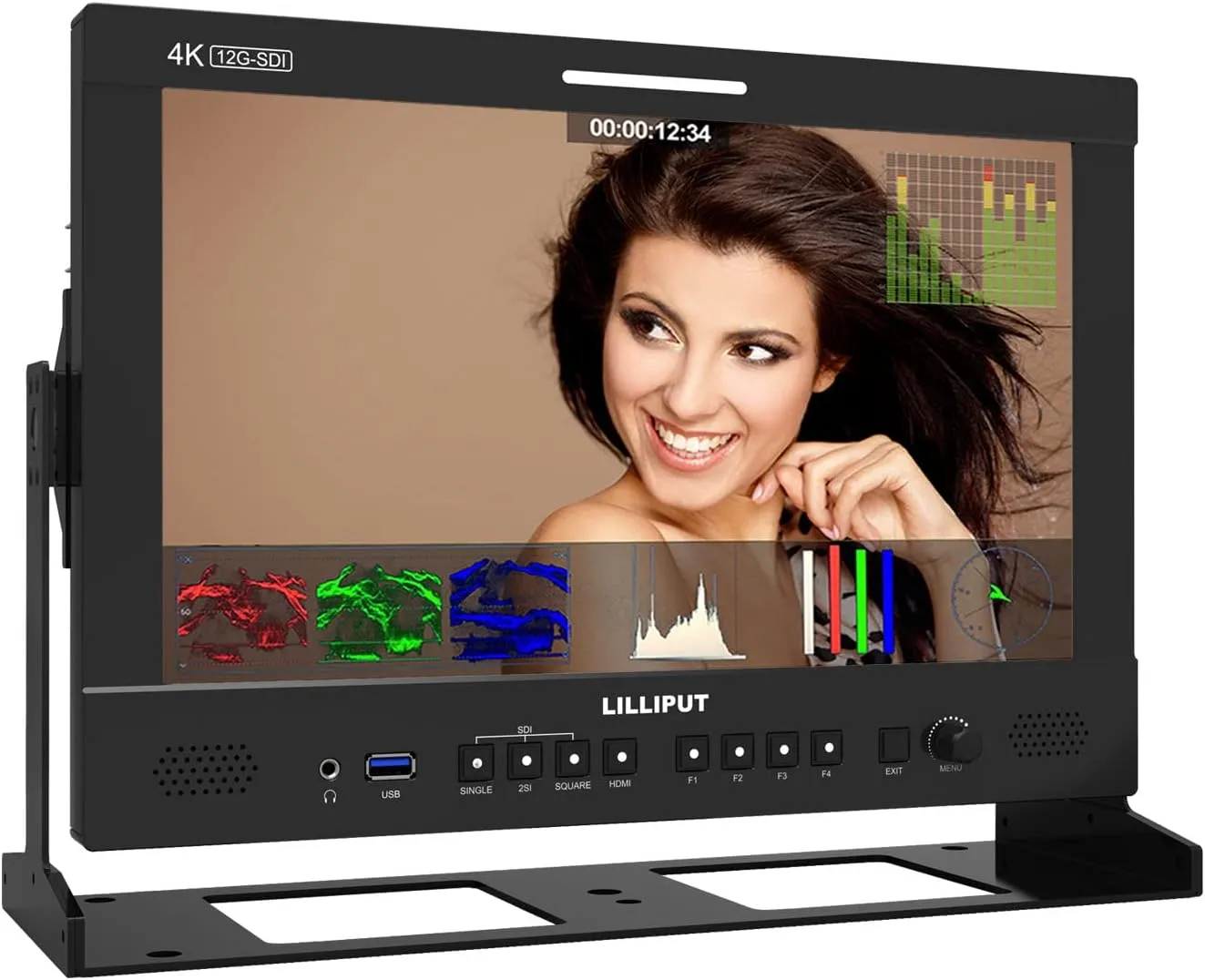

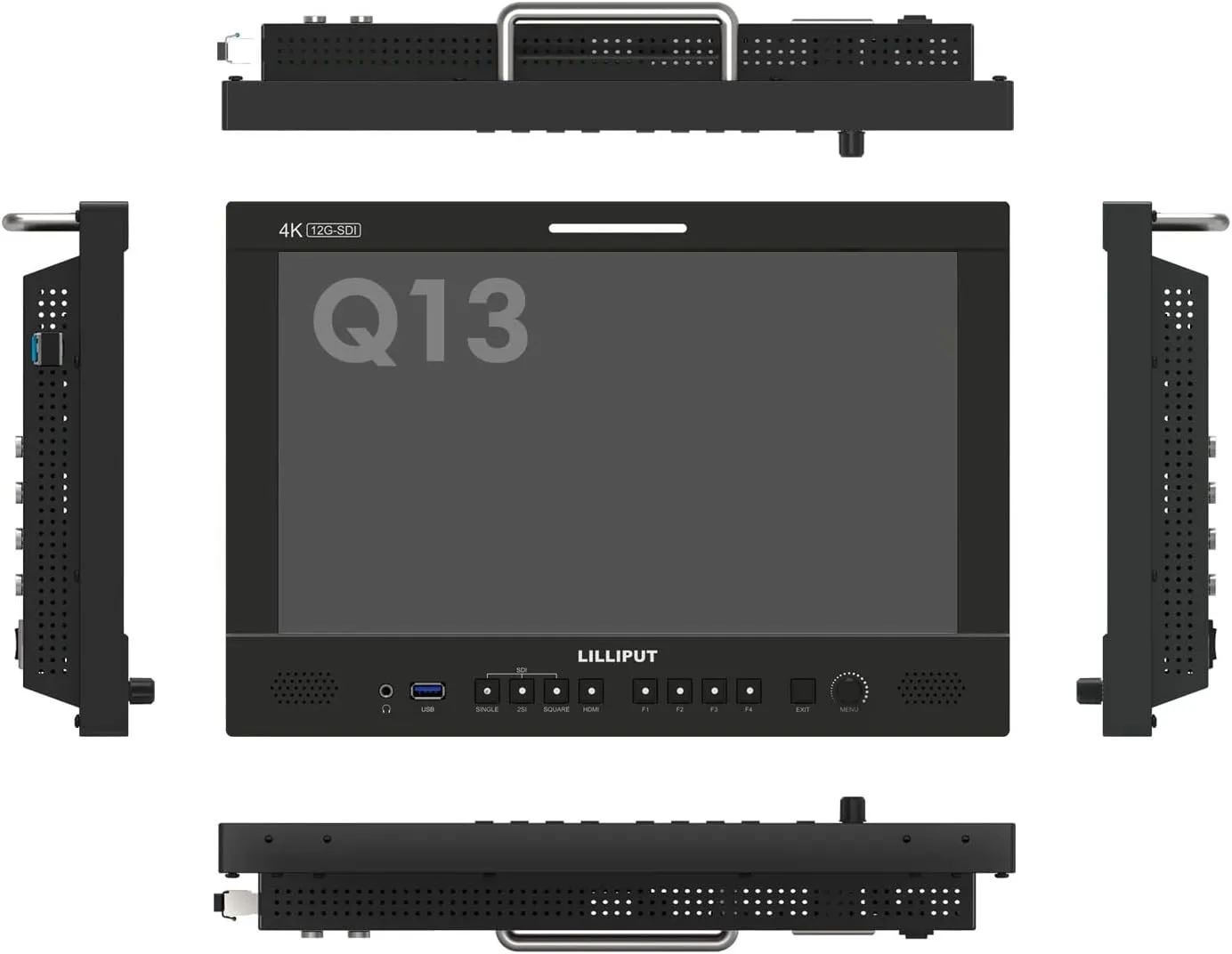

- Lilliput Q13 13.3" 12G-SDI Studio / Broadcast Monitor
- The Lilliput Q13 is a professional grade studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs the Q13 features a 12G SDI, 12G-SFP and HDMI input connection for broadcast quality monitoring with 12G-SDI and HDMI 2.0 out. Also included is Audio Vectoring using a Lissajous graph shape to allow you to visualize the depth and balance of a stereo recording. You can also connect your computer to control the monitor using apps.
- Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input and output interfaces the Q13 can support up to a 4096x2160(60p,50p,30p,25p,24p) signal. The 12G SFP interface allows you to transmit a 12G-SDI signal via the SFP Optical Module for broadcast quality results!
- Features: 12G-SDI/4K HDMI Audio Vector (Lissajous) Quad Split Multiview Remote Control for Multiple Monitors with LAN/RS422/GPI Accurate Color Calibration HDR 3D LUT
- DISPLAY Panel: 13.3" Physical Resolution: 3840*2160 Aspect Ratio: 16:9 Brightness: 300 cd/m² Contrast: 1000:1 Viewing Angle: 178°/178°(H/V) HDR: ST2084 300/1000/10000/HLG Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User. Look up Table(LUT)support: 3D LUT (.cube format) Technology: Calibration to Rec.709 with optional calibration unit
- VIDEO INPUT SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link) SFP: 1x12G SFP (Fiber module for optional) HDMI: 1xHDMI 2.0
- VIDEO LOOP OUTPUT SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link) HDMI: 1xHDMI 2.0
