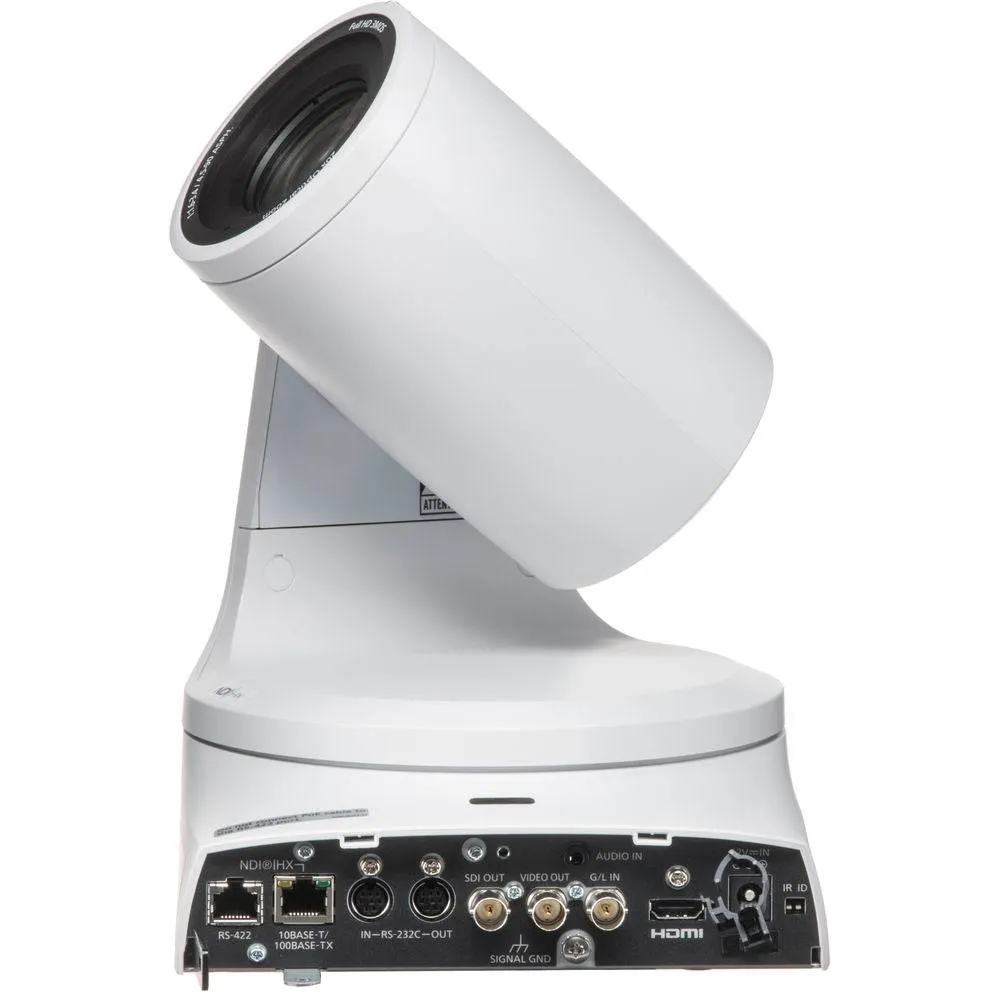

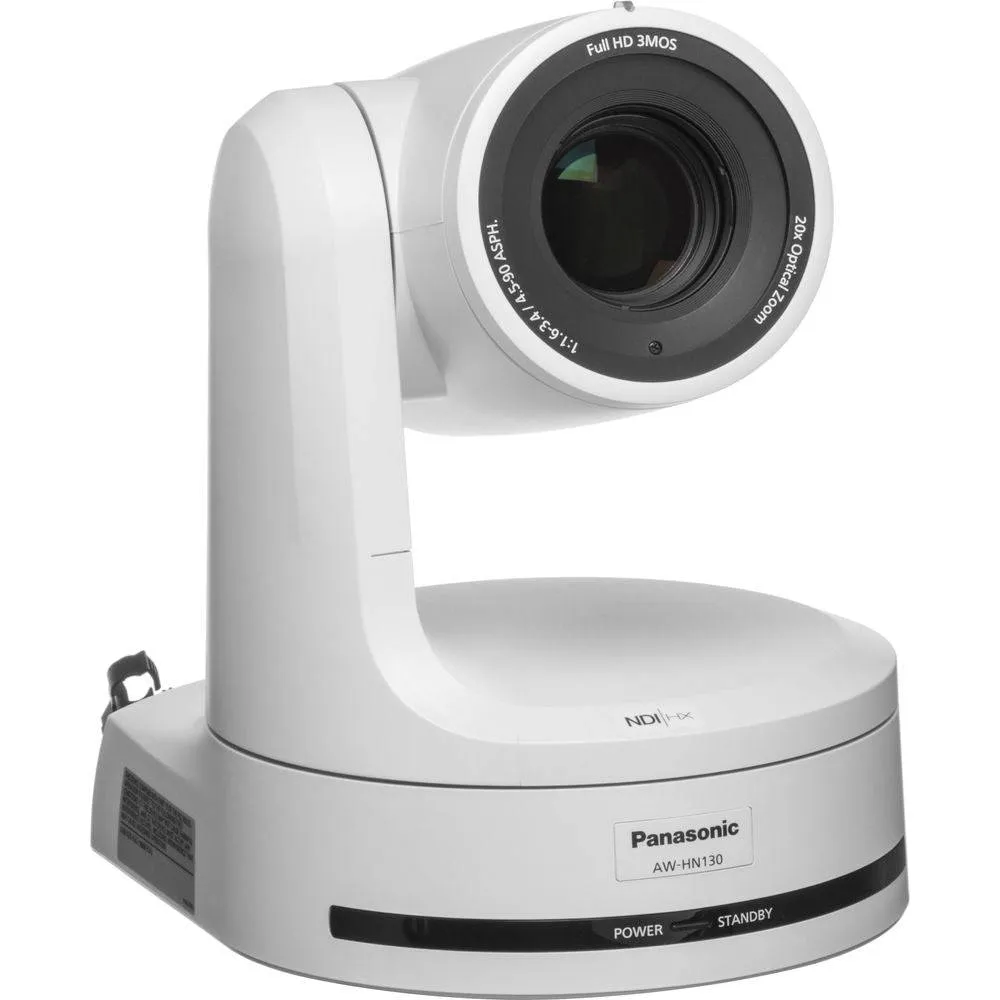

The Panasonic AW-HE130 Full-HD 20x PTZ Camera (White) is indoor use High Definition PTZ Camera with Three 1/2.86 MOS sensors. In addition to 3G-SDI and HDMI, this camera to deliver up to four channels of sharp, HD video output with a resolution of up to 1080/60p, This PTZ Camera support POE with only one LAN cable you can power and control the camera and video output. The camera is has fast F1.6 aperture with 20x optical zoom lens, and an 1.4x digital extender that can increase the focal length. A built-in neutral density filter and DRS (Dynamic Range Stretch) work in conjunction with 12 color axes and 3 skin tone axes to give you even more control of your resulting images. Equipped Optical Image Stabilizer, this camera Automatically minimizes the effect of small vibrations from the surface where the camera is mounted caused.
Full HD video output via IP transmission
Built-in 3G-SDI and HDMI output this PTZ Camera deliver production quality full HD video output via IP transmission is supported with the AW-HE130W/K. The camera delivers up to four channels of IP streaming video (H.264), with a maximum quality level of 1080/60p at 24 Mbps* 1. Simultaneous transmission to as many as 14 devices is also supported.* 2 Flexible system setup is possible to meet various application needs.
Supporting POE
By connecting to network devices that support the IEEE 802.3at POE standard, power can be supplied via LAN cable. Since it is not necessary to install a power supply or even a local A.C. outlet, installation costs can be signicantly reduced
IP control with image monitoring
Using an IP browser, such as Internet Explorer or Safari, it is possible to set up and control the camera from a remote location, This feature simplies the management of cameras around a campus, or across a worldwide enterprise network. IP video monitoring and remote camera control can also be performed from mobile terminals such as an iPhone, iPad or Android device
1/2.86-type MOS sensors
Equipped with three newly developed 1/2.86-type full HD MOS sensors and DSP (Digital Signal Processor), AW-HE130W/K achieves high sensitivity, a high S/N ratio and high resolution through the use of advanced video processing.
Optical Image Stabilizer and Digital Extender
Optical Image Stabilization System (OIS) automatically minimizes the effect of small vibrations from the surface where the camera is mounted caused ; whether this is caused by the opening and closing of doors, nearby speakers, or other disturbances.
20x Zoom Lens and 1.4x Digital Extender Zoom
In addition to a sharp, fast F1.6, 20x optical zoom lens, the AW-HE130W/K is equipped with an innovative 1.4x digital extender that can increase the effective focal length of the lens by 40% while delivering smooth, high resolution video
Dynamic Range Stretch and Digital Noise Reduction
Black defects, halation and washed-out colors are minimized for video images with a visually broad dynamic range (DRS). In addition, with Hybrid Digital Noise Reduction (Hybrid DNR), two types of noise reduction, 2D and 3D, are used together to enable clear video capture under a wide range of lighting conditions, with minimal after-image blurring or image degradation.
