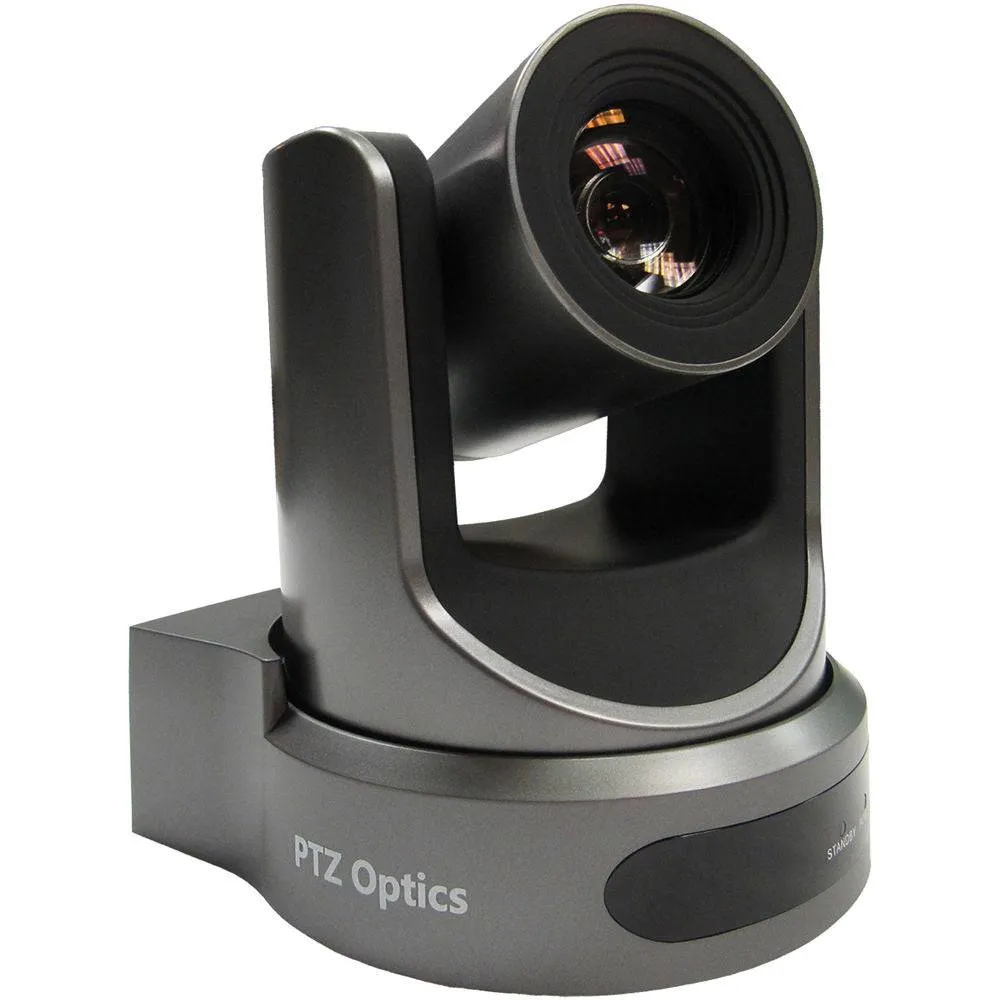

The PTZOptics 20x-USB Gen2 Live Streaming PTZ Camera (Gray) is a camera that has 1080pp60/50 recording capability with 20x optical zoom that works in capturing HD Video at long distances condition. This model has two types: gray and white. Both offer advanced video conferencing cameras that have the USB 3.0 output for connectivity with a computer; to have HD web-conferencing. This Gen2 series provides streaming quality in H.265 and MPJEG.
Built with a better lens; this PTZOptics 20X-USB has the 4.4 - 88.5mm lens providing the 20x zoom range for advantageous close-focus and broad-angle shots; work well for group meetings and face-to-face function. The fast f/1.8 - f/2.8 lens aperture and minimum illumination requirement of only 0.5 lux at f/1.8 provide the best operation in low-light conditions. This camera is also built with a broad dynamic range as well as 2D and 3D noise cancellation. The USB 3.0 port compatible with the USB 2.0 only if the resolution is at 960 x 540. Equipped with the open-source feature; this camera provides developers with the flexibility to customize using HTML commands. For reliable processing, users need to use the quad-core computer (Mac or Windows) for the uncompressed 1080p video output.

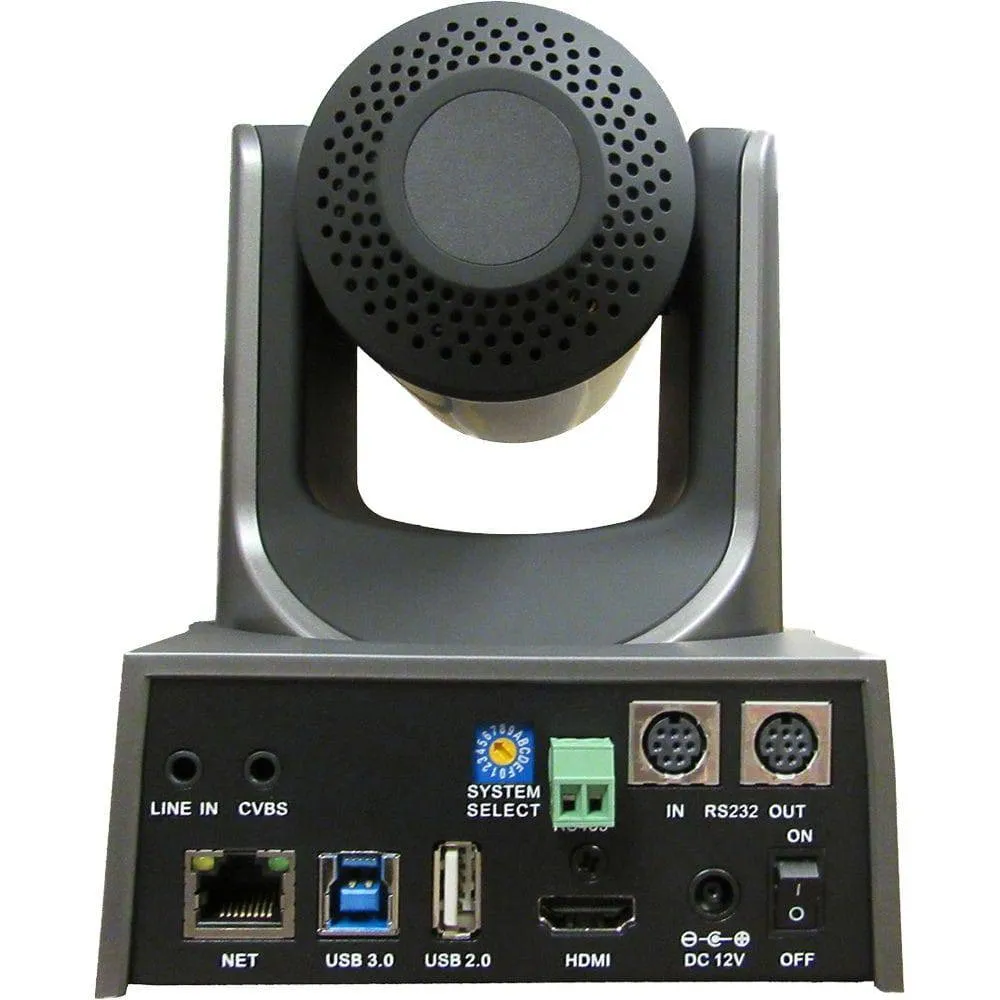

More features from this PTZOptics 20X-USB, such as LAN, HDMI, and composite outputs, RS-232 input, and output with daisy-chain capability and the RS-485 port. To make the Composite output works well; users need to make sure that the resolution is at 480i/576i resolution. The LAN output has the ability in streaming two H.264 or two H.265 RTSP signals. Both signals consist of one HD, one in single MPJEG that provides users direct distribution to streaming services, CDNs, and other destinations by utilizing the camera. Users can control this camera via the LAN port, RS-232 via VISCA, and the ONVIF network. The built-in UVC Control provides users with pan/tilt/zoom control via the USB cable as well as the UVC protocol set to either relative or absolute for use with the compatible software.
The PTZOptics 20X-USB is not only offering its beneficial feature but also the compatibility to work with other equipment such as NewTek TriCaster (including the TriCaster Mini). On the software supports, there is some software such as UVC Control, mobile apps for control over the network, online meeting software, and the advanced PTZOptics Network Control. This camera has the included IR remote control that helps users to adjust plenty of settings via the on-screen display. There are 64 presets and up to 255 presets via RS-232 in the camera.
