Wooden Camera D-Box Overview

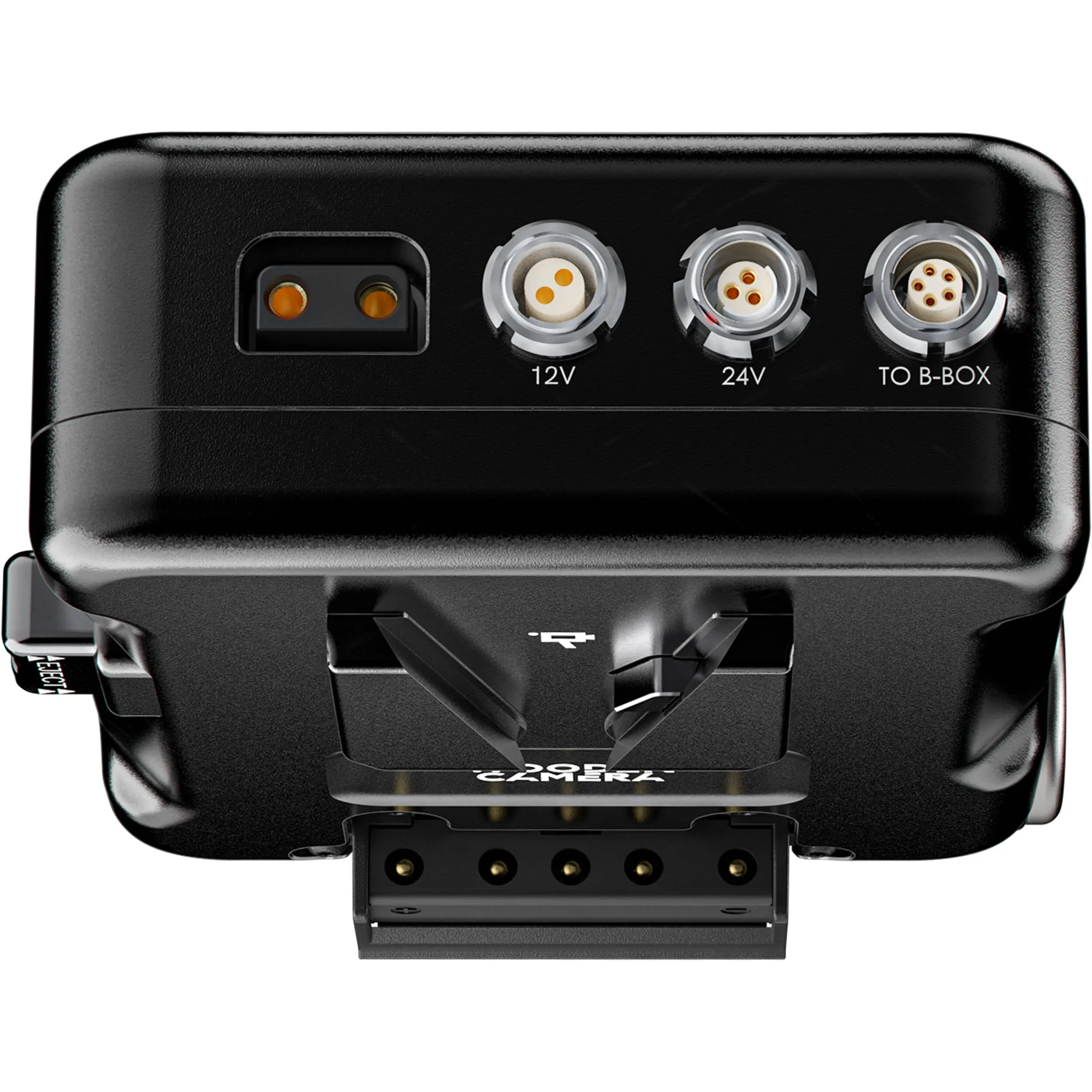

The D-Box from Wooden Camera is an adapter that provides power distribution, remote power on/off, and hot swap battery functions for the Sony Burano cinema camera. Expanding your selection of powered accessory connectors, this box features a D-Tap output, a 2-pin 12V LEMO-type output, a 3-pin 24V output, and one DC input port. All outputs are active simultaneously.

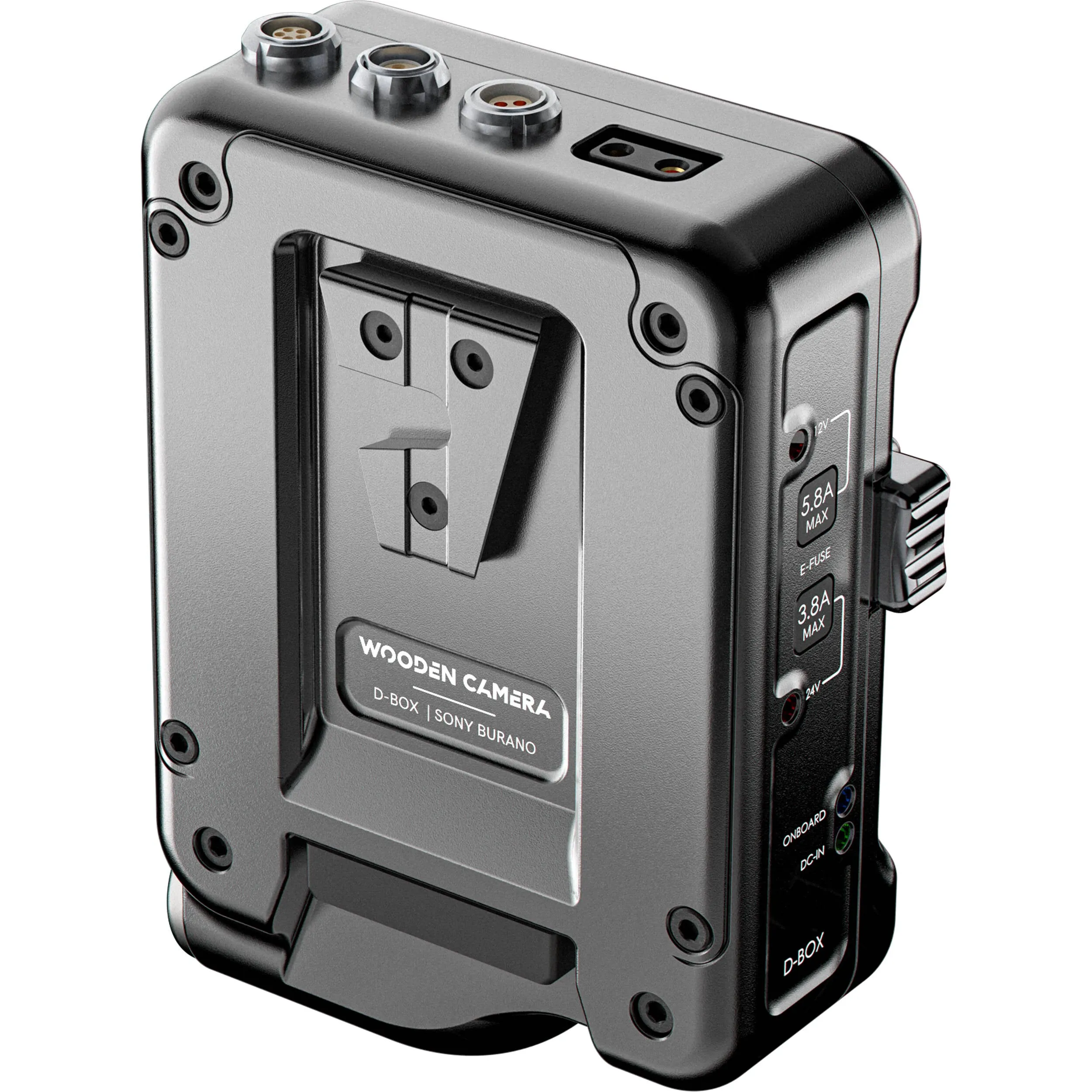

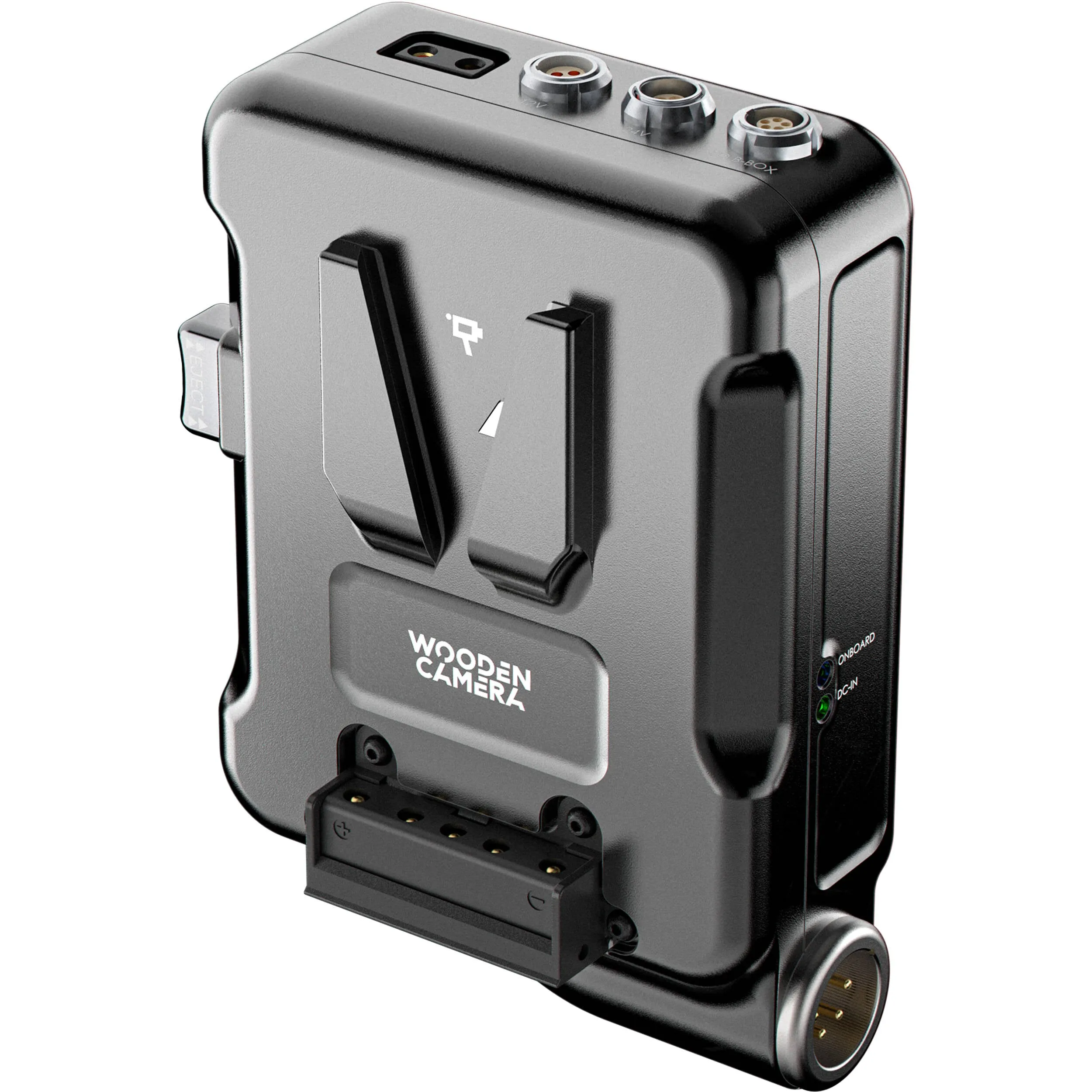

Designed to fit between a battery and the camera's battery mount, the D-Box has a male V-mount on the camera side and a female V-mount on the other, internally passing power to the output connectors and to the camera. The D-Box's DC input port enables you to connect a power supply, thus maintaining power to both the camera and its accessories during a battery swap.
Items Included
- Wooden Camera D-Box for Sony Burano Camera (V-Mount)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera D-Box Specs
| Power Output | D-Tap: VDC LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method | Battery Plate Mount Type, Connector |
| Plate Front / Battery Mount | V-Mount |
| Hot-Swap Support | Yes |
| Power Input | Mini 4-Pin XLR: VDC |
| Power Output | D-Tap: VDC LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method | Battery Plate Mount Type, Connector |
| Inputs/Outputs | 1x D-Tap 1x LEMO 2-Pin 1x LEMO 3-Pin 1x Mini XLR 4-Pin Male |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | V-Mount Battery Plate |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Dimensions | 53.1 x 37.8 x 18.5" / 135 x 96 x 47 cm |
| Weight | 0.9 lb / 400.5 g |
| Package Weight | 1.245 lb |
| Box Dimensions (LxWxH) | 6.9 x 4.45 x 3.3" |
