Wooden Camera A00347 Overview

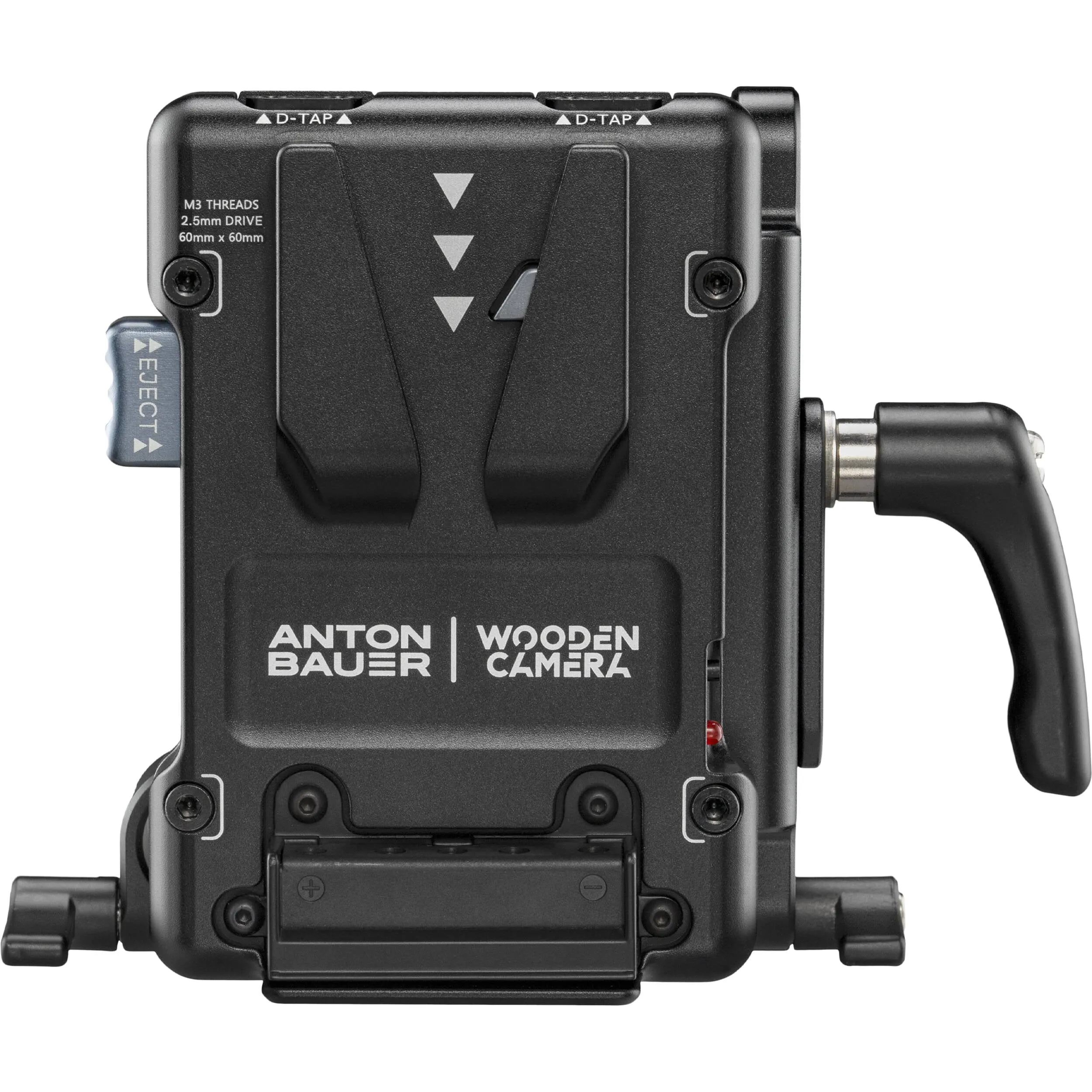

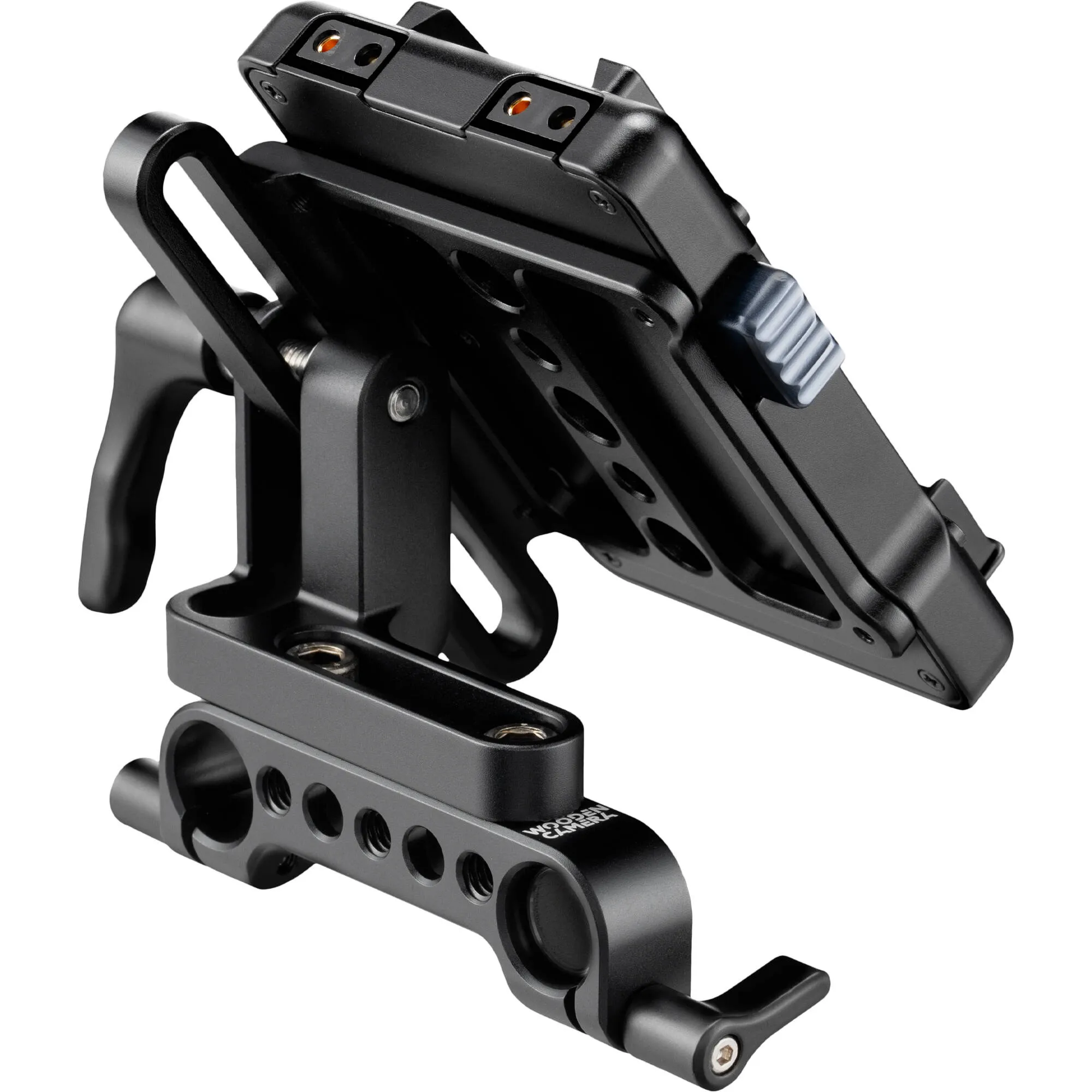

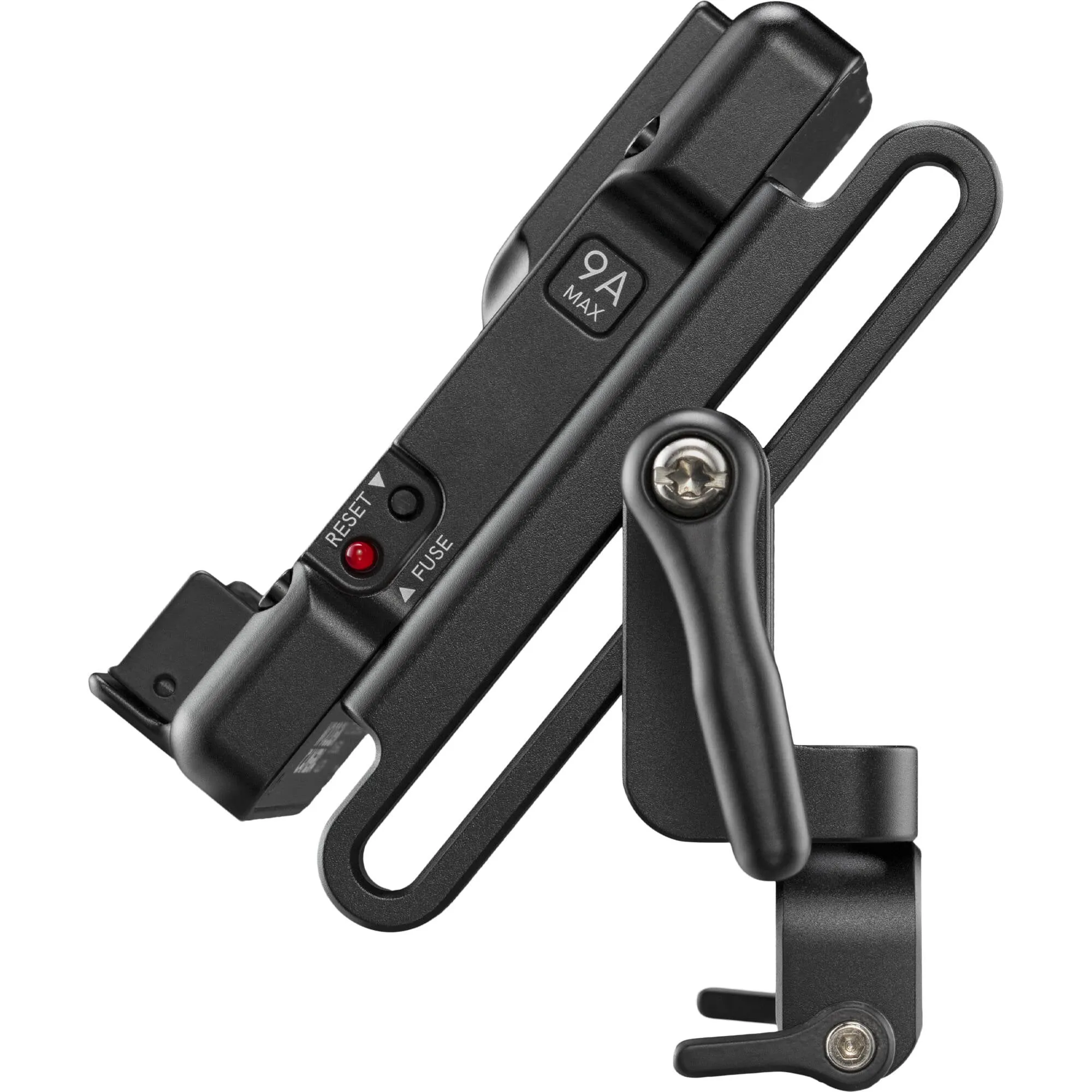

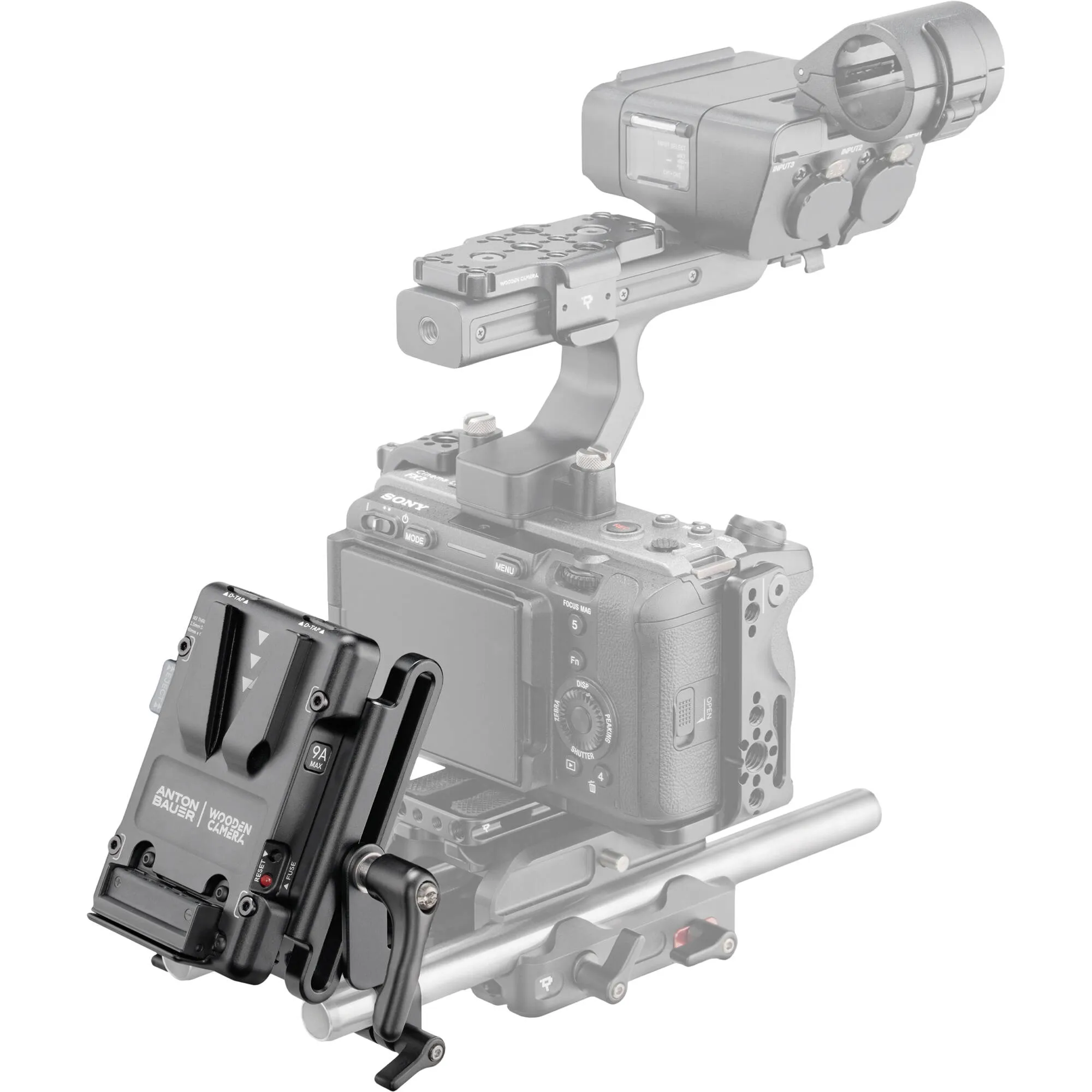

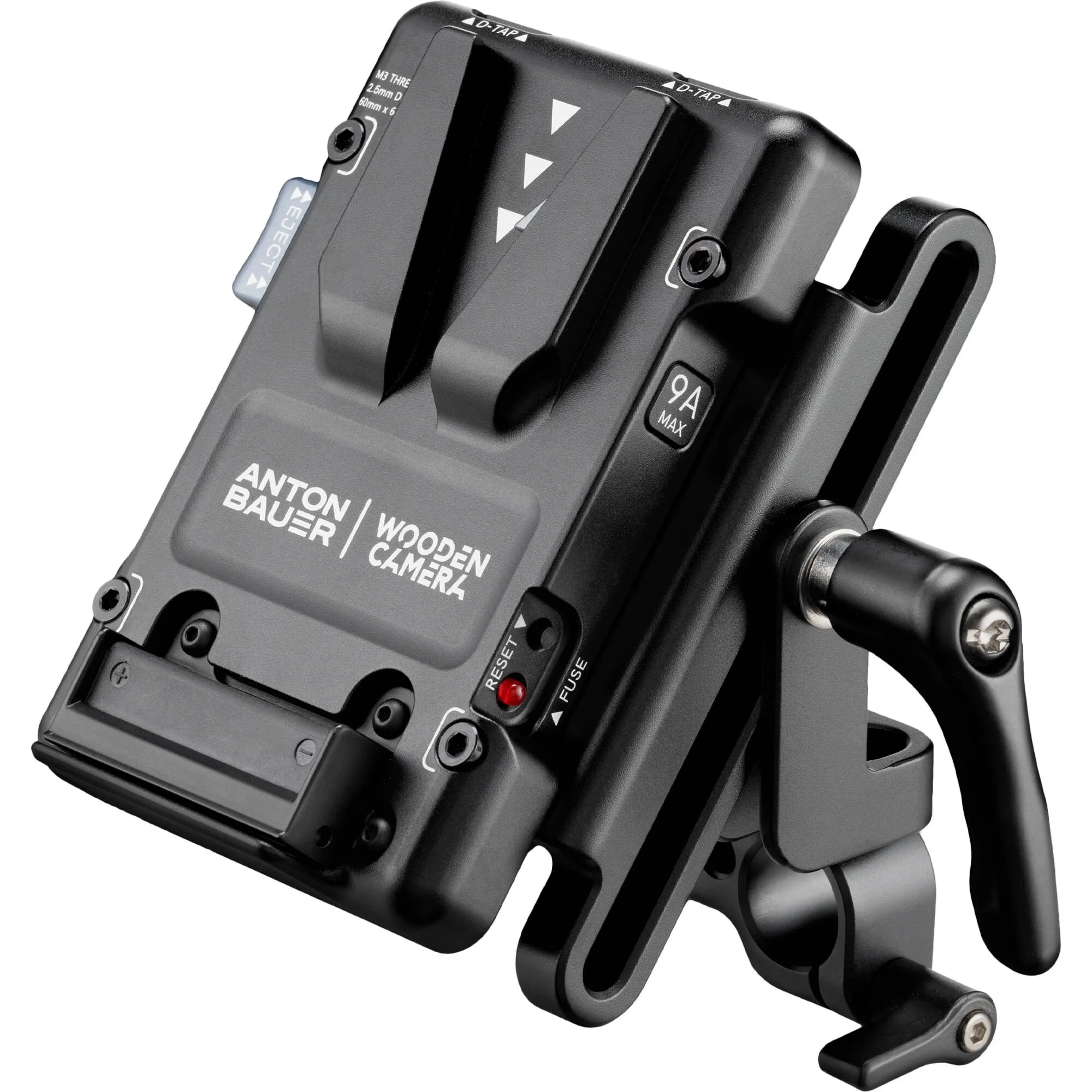

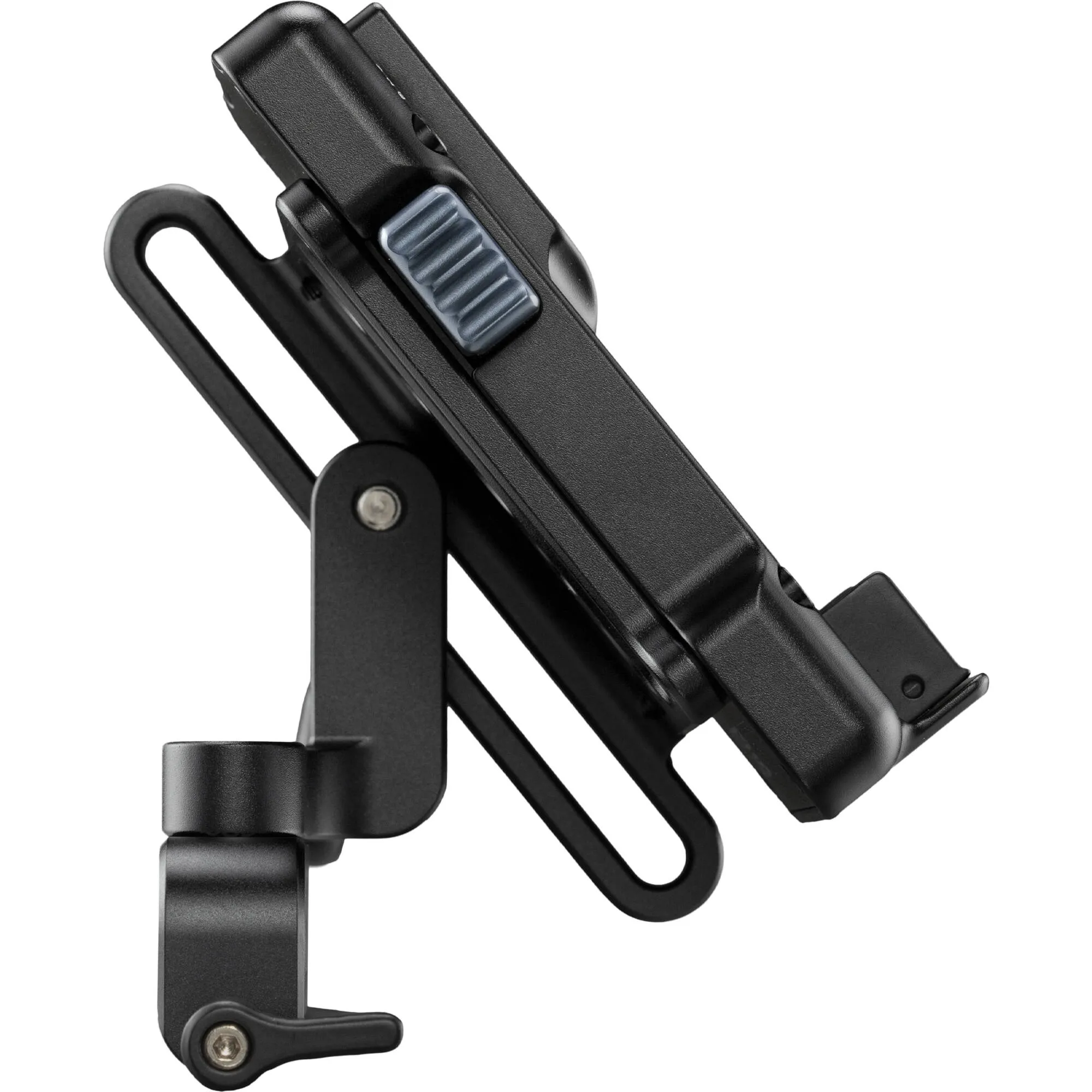

Power your camera and accessories with a V-mount battery using this Micro Battery Slide Plate with Dual 15mm Dual Rod Clamp from Wooden Camera. The battery plate itself can slide up and down and be tightened in place using the attached lever for optimal placing on your rig. Two D-tap ports take power from your attached V-mount battery and deliver it to your camera or accessories of your choice. The plate features a 9A fuse that can be reset as needed. A dual 15mm rod clamp attaches the plate to your shoulder- or tripod-mounted rig. Multiple 1/4"-20 and 3/8"-16 threads on the back of the plate and on the rod clamp accommodate additional accessories.
UPC: 655466989590
In the Box
- Wooden Camera Micro Battery Slide Plate with Dual 15mm Rod Clamp (V-Mount)
- Limited 1-Year Manufacturer Warranty
Wooden Camera A00347 Specs
Key Specs
| Maximum Load | 9 A |
| Power Output | D-Tap: VDC |
| Plate Front / Battery Mount | Micro V-Mount |
Power
| Power Input | Micro V-Mount: VDC |
| Maximum Load | 9 A |
| Power Output | D-Tap: VDC |
General
| Plate Front / Battery Mount | Micro V-Mount |
| Plate Rear Mount | 15 mm Rod Clamp |
| Number of Battery Bays | 1 |
| Accessory Mounting | 1/4"-20 Female, 3/8"-16 Female |
| Indicator | LED |
| Dimensions | 5.1 x 4 x 2" / 130 x 102 x 50 mm |
| Weight | 10 oz / 282.9 g |
Packaging Info
| Package Weight | 1.04 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.4 x 3.2" |
